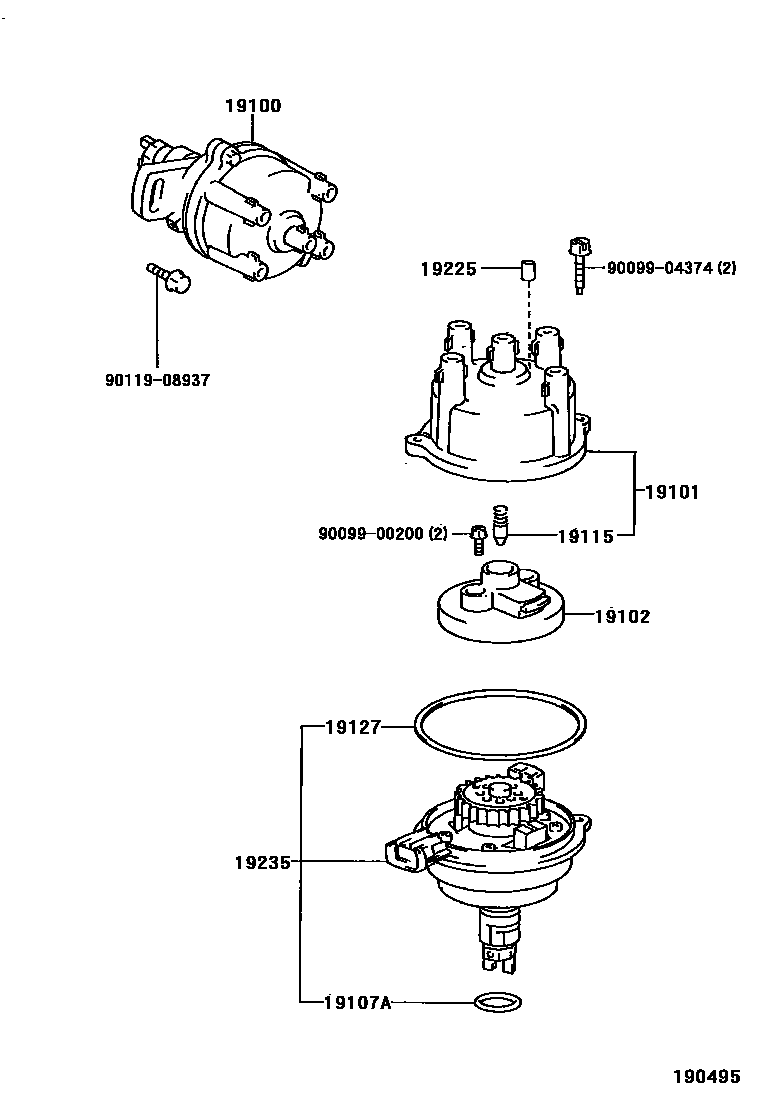

Toyota MR2 — DISTRIBUTOR

0001 1 0002 1 0003 1

19100DISTRIBUTOR ASSY

main19100-74060i3SFE..SW20198912-199208

main19100-88363i3SGE..SW20198912-199112

main19100-88364i3SGE..SW20199112-199311

main19100-88460i3SGE..SW20199311

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74110i3SFE..SW20198912-199208

main19101-88363i3SGE..SW20198912-199112

main19101-88364i3SGE..SW20199112-199311

main19101-88460i3SGE..SW20199311

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-74040i3S#..SW20198912

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i3SGE..SW20199103

main90099-14091i3SFE..SW20198912-199208

main90099-14106i3SGE..SW20198912-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i3S#..SW20198912

19127PACKING, DUST PROOF

main19127-74040i3S#..SW20198912

19225CAP, RUBBER

main19225-74060i3SFE..SW20198912-199208

main19225-88460i3SGE..SW20199311

NO.1

main19225-88461i3SGE..SW20199311

NO.2

19235HOUSING, DISTRIBUTOR

main19235-74110i3SFE..SW20198912-199208

main19235-88040i3SGE..SW20199311

main19235-88363i3SGE..SW20198912-199311

9009900200

main90099-00200

9009904374

main90099-04374

9011908937

main90119-08937

11 parts on this diagram · 3 diagrams in section
