Toyota MR2 — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4:REFER TO REPAIR MANUAL,MARK 4
REFER TO REPAIR MANUAL,MARK1
REFER TO REPAIR MANUAL,MARK2
REFER TO REPAIR MANUAL,MARK3
REFER TO REPAIR MANUAL,MARK4
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
REFER TO REPAIR MANUAL,MARK1
REFER TO REPAIR MANUAL,MARK2
REFER TO REPAIR MANUAL,MARK3
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1

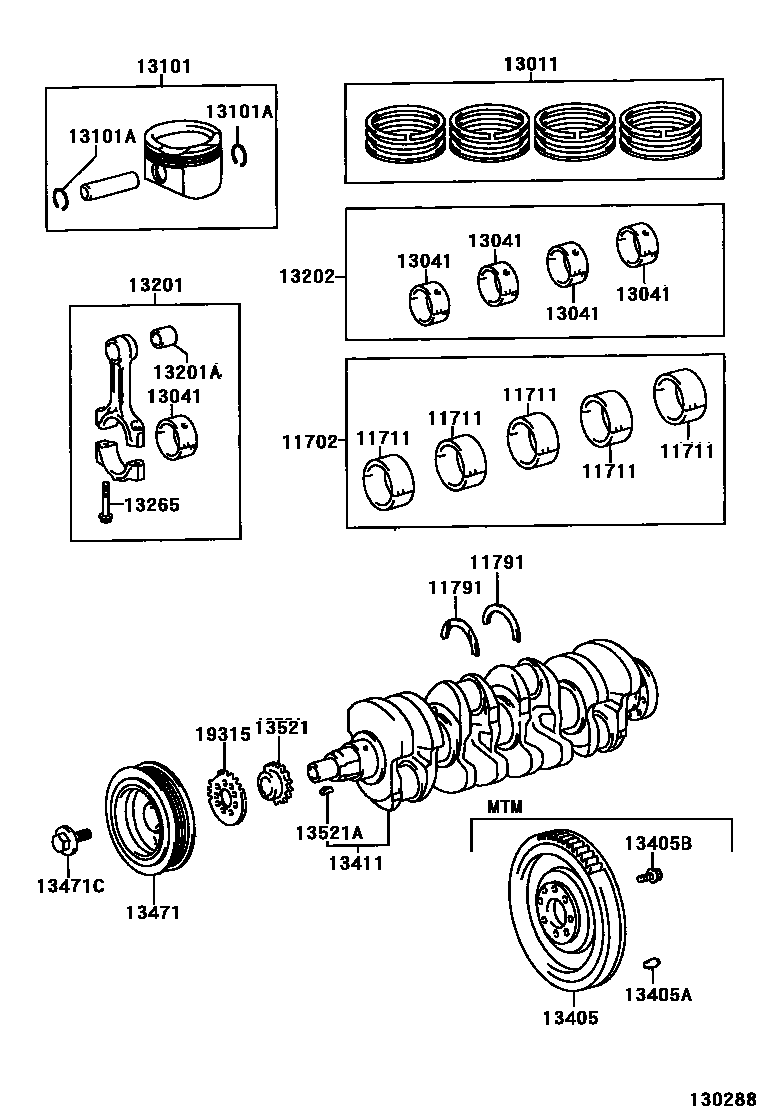

20 parts on this diagram · 1 diagram in section
