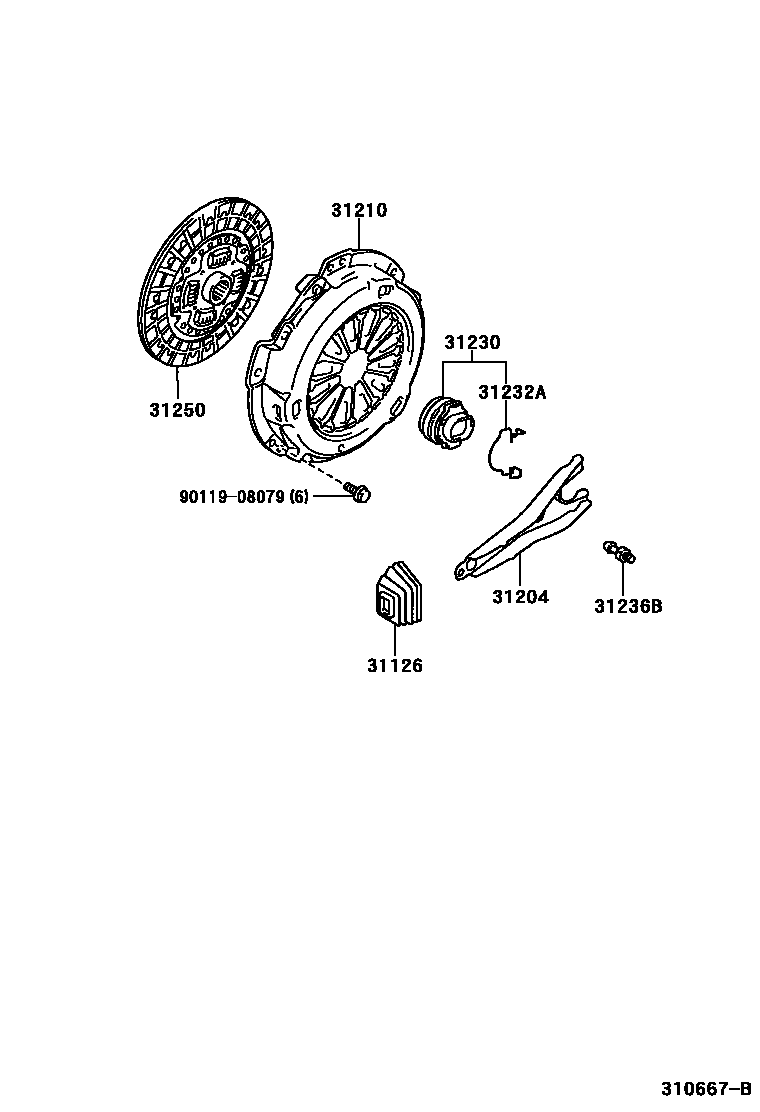

Toyota MR2 — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZW30..6F200208-200509

main31126-17010iZZW30..5FS200008-200208

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZW30..6F200208-200509

main31204-17020iZZW30..6FS200208-200509

31210COVER ASSY, CLUTCH

main31210-12221iZZW30199912-200004

sub31210-12310

main31210-17040iZZW30200004-200208

sub31210-17041

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170iZZW30..5F199912-200101

main31230-12171iZZW30..5F200101-200201

main31230-12191iZZW30..6F200208-200509

main31230-17010iZZW30..5FS200008-200208

main31230-17011iZZW30..6FS200505-200509

sub31230-17012

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZW30..6F200208-200509

main31232-17010iZZW30..6FS200208-200509

31236BSUPPORT, RELEASE FORK

main31236-12020iZZW30199912-200208

31250DISC ASSY, CLUTCH

main31250-12360iZZW30199912-200208

sub31250-12361

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
