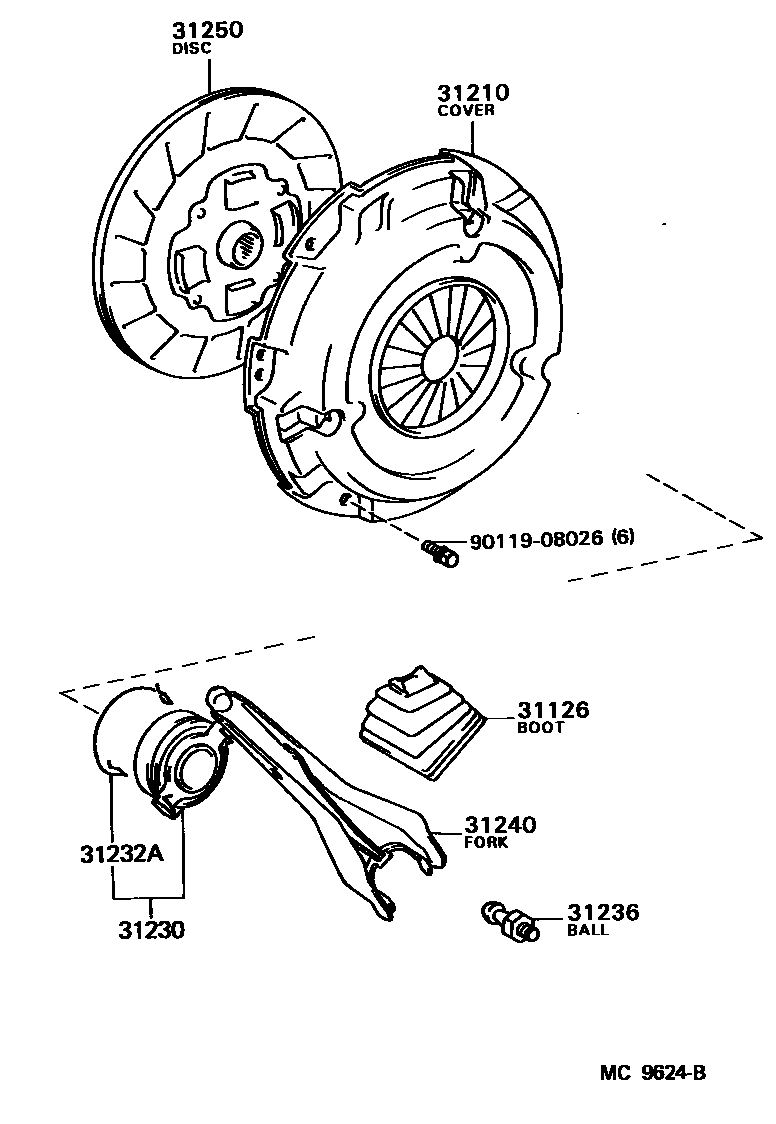

Toyota MR2 — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iAW11198411-198701

main31126-12051iAW11198701-198912

31210COVER ASSY, CLUTCH

main31210-12080iAW11198411-198506

main31210-12150iAW11198812-198911

main31210-12151iAW11198911-198912

main31210-17010iAW11198506-198705

main31210-17011iAW11198705-198805

main31210-17012iAW11198805-198812

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iAW11198606-198708

main31230-12130iAW11198411-198606

main31230-12140iAW11198801-198912

main31230-16060iAW11198708-198801

main31230-16060iAW11198803-198912

NACHI

31232ACLIP, RELEASE BEARING HUB

main31232-12040iAW11198708-198912

KOYO

main31232-16031iAW11198708-198912

NSK,NACHI

31236BALL, RELEASE FORK

main31236-12011iAW11198411-198912

31240FORK ASSY, CLUTCH RELEASE

main31204-12050iAW11198411-198912

31250DISC ASSY, CLUTCH

main31250-17010iAW11198411-198506

main31250-17020iAW11198506-198912

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
