Toyota MR2BACK UP LAMP

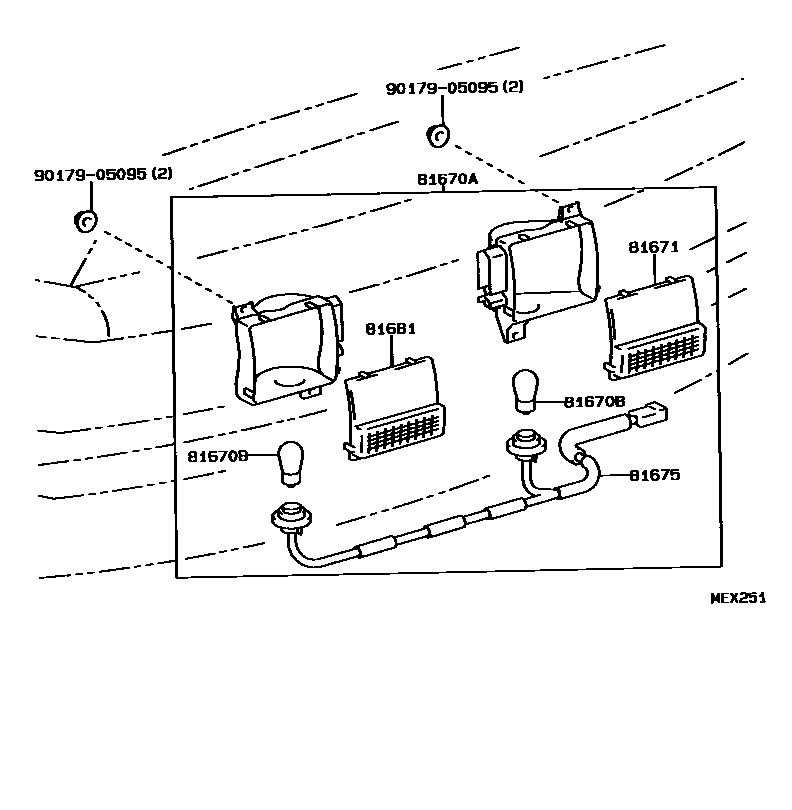

Parts diagram
81670ALAMP ASSY, BACK-UP
main81670-17010i199311
81670BBULB(FOR BACK-UP LAMP)
main99132-11210×2i199311
12V 21W
81671LENS, BACK-UP LAMP, RH
main81671-17010i199311
81675SOCKET & WIRE, BACK-UP LAMP
main81675-17010i199311
81681LENS, BACK-UP LAMP, LH
main81672-17010i199311
9017905095

6 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota MR2

This section contains 6 genuine Toyota parts for the BACK UP LAMP system of the Toyota MR2. Key components include: LAMP ASSY, BACK-UP, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, SOCKET & WIRE, BACK-UP LAMP, LENS, BACK-UP LAMP, LH.
