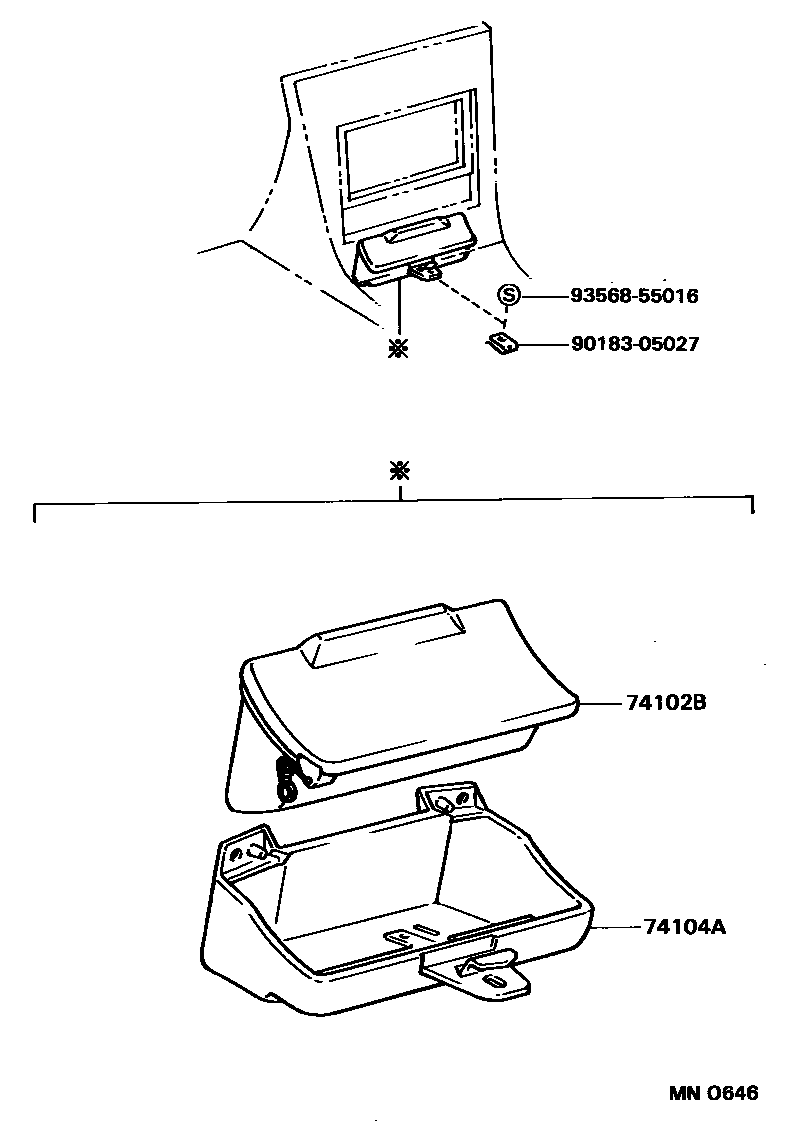

Toyota MR2 — ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-17040i198912-199106

main74102-17050i199106-199107

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-17020i198912

9018305027

main90183-05027

9356855016

main93568-55016

4 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota MR2

This section contains 4 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota MR2. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE.
