Toyota MR2 — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-17010-01198411-198608

main74102-17020-01198608-198808

main74102-17020-04198608-198912

main74102-17020-05198608-198808

main74102-17020-11198808-198912

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-17010-01198411-198608

9054102001

main90541-02001

9054102004

main90541-02004

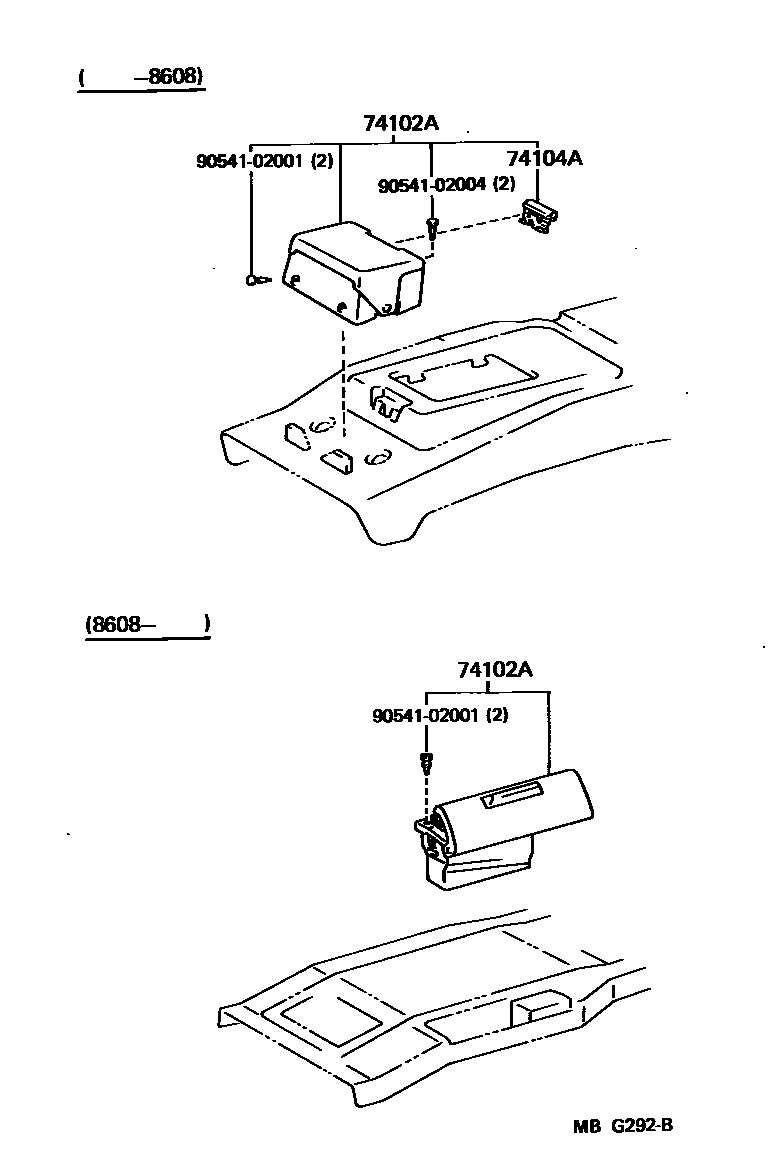

4 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota MR2

This section contains 4 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota MR2. Key components include: RECEPTACLE ASSY, FRONT ASH, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE.
