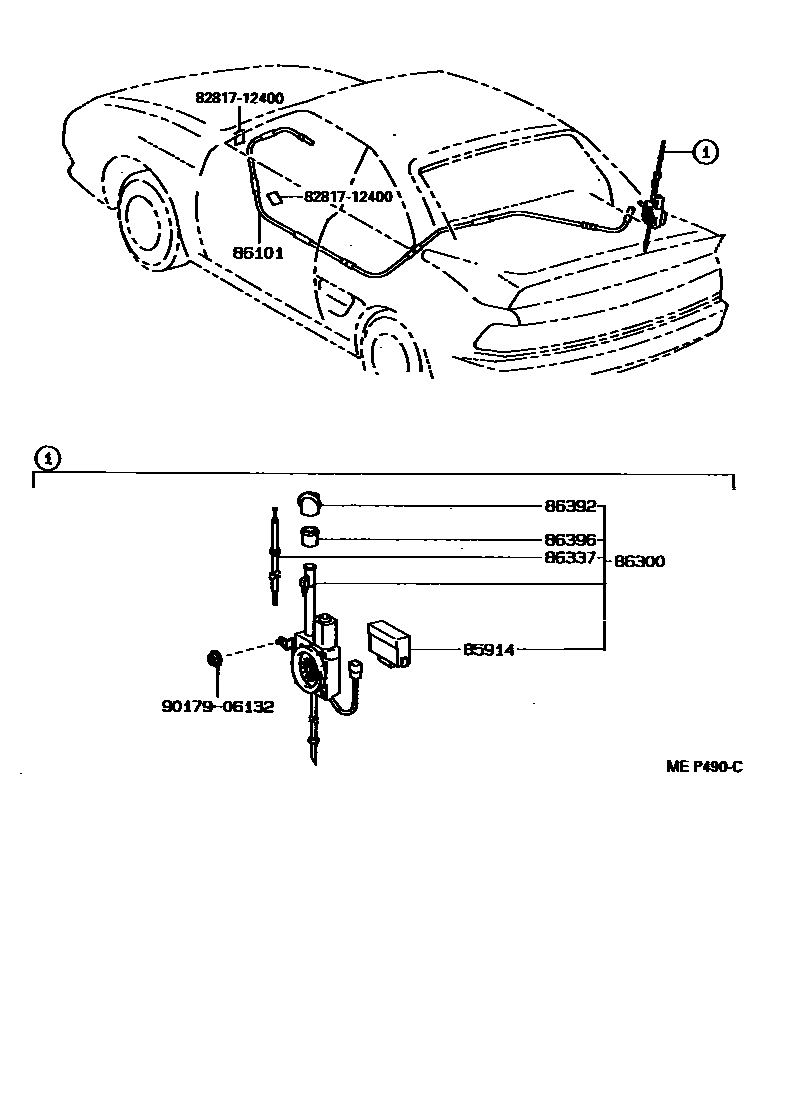

Toyota MR2 — ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010iSW20198912-199505

main85914-33020iSW20199505

86101CORD SUB-ASSY, ANTENNA

main86101-17040iSW20198912

86300ANTENNA ASSY, W/HOLDER

main86300-17080iSW20199311-199505

main86300-17081iSW20199505

main86300-17100iSW20..G,W198912-199311

main86300-17110iSW20..ARL198912-199311

W(RR SPOILER)

86337ROD & PIPE, SEALED W/CABLE

main86337-17080iSW20199311

main86337-17110iSW20..ARL198912-199311

W(RR SPOILER)

main86337-32200iSW20..G,W198912-199311

86392ORNAMENT, ANTENNA

main86392-17070iSW20198912-199311

main86392-17080iSW20199311

86396NUT, ANTENNA

main86396-20030iSW20199311

main86396-50010iSW20198912-199311

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

9017906132

main90179-06132

8 parts on this diagram · 1 diagram in section
