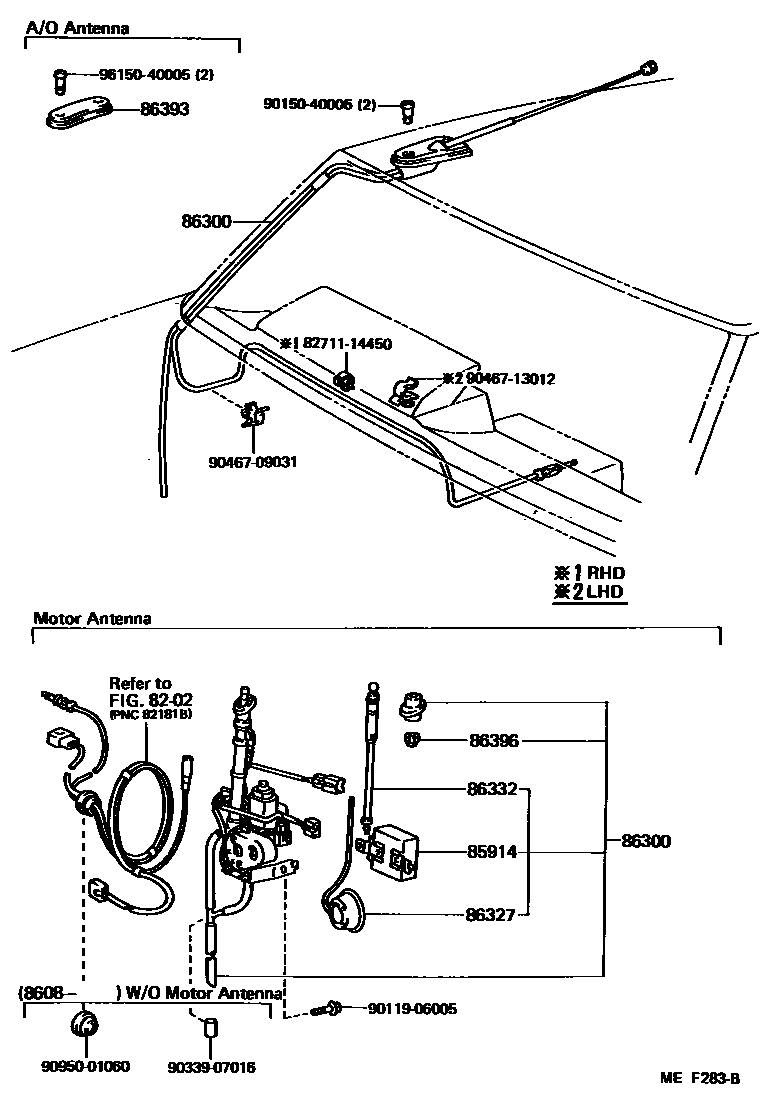

Toyota MR2 — ANTENNA

8202

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14020iAW11..TBR..GEN198608-198912

86300ANTENNA ASSY, W/HOLDER

main86300-17010iAW11..RHD198411-198608

main86300-17020iAW11..LHD198411-198608

main86300-17060iAW11..EUR198608-198809

main86300-17061iAW11..ARL198809-198912

86327CABLE, W/ANTENNA DRUM

main86327-22210iAW11..ARL,EUR198608-198912

sub86327-22211

86332ROD, ANTENNA

main86332-17060iAW11..ARL,EUR198608-198912

86393ORNAMENT, ANTENNA

main86392-17010iAW11198411-198608

86396NUT, ANTENNA

main86396-14040iAW11..ARL,EUR198608-198803

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9011906005

main90119-06005

9015040005

main90150-40005

9033907016

main90339-07016

9046709031

main90467-09031

9046713012

main90467-13012

9095001060

main90950-01060

9615040005

main96150-40005

15 parts on this diagram · 1 diagram in section
