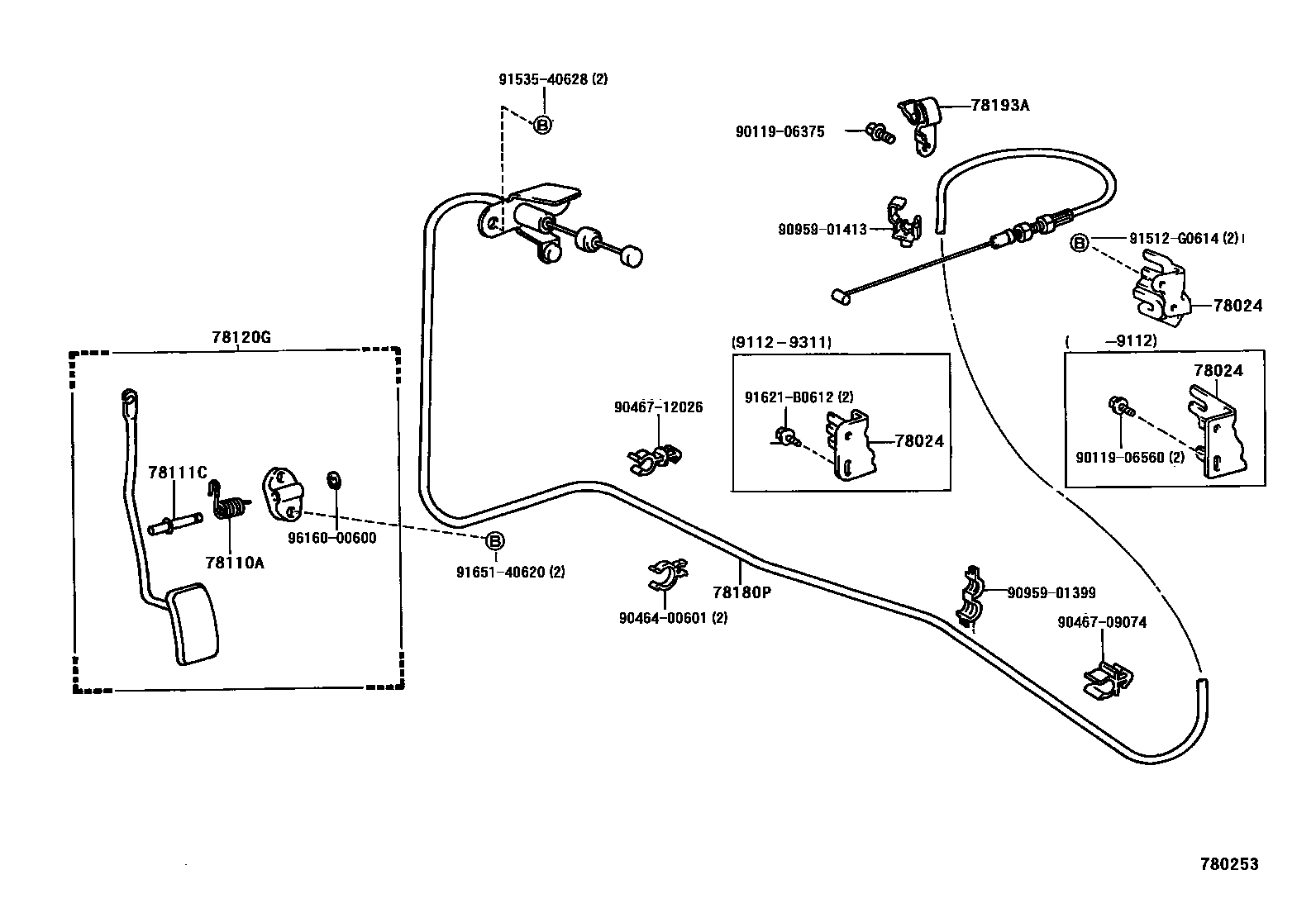

Toyota MR2 — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-17010iSW20..TWC199112-199311

main78024-20120iSW20..TWC198912-199112

main78024-20130iSW20..HTWC198912-199208

main78024-88460iSW20199311-199606

main78024-88461iSW20199606

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18086iSW20..RHD198912-199311

main90508-18087iSW20..LHD198912-199311

main90959-03044iSW20..RHD199311

main90959-03045iSW20..LHD199311

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-08116iSW20198912

78120GROD ASSY, ACCELERATOR PEDAL

main78120-17030iSW20..RHD198912-199311

main78120-17040iSW20..LHD198912-199311

main78120-17050iSW20..RHD199311

main78120-17060iSW20..LHD199311

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-17140iSW20..RHD..TWC198912-199112

main78180-17141iSW20..RHD199311

main78180-17170iSW20..LHD198912-199112

main78180-17171iSW20..LHD199311

main78180-17190iSW20..ARL198912-199311

W(CRUISE CONTROL SYSTEM)

main78180-17191iSW20..ARL199606

W(POWER STEERING)

main78180-17220iSW20..HTWC198912-199112

main78180-17260iSW20..RHD..TWC199112-199311

main78180-17270iSW20..LHD199112-199311

main78180-17290iSW20..W199112-199208

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-20071iSW20..TWC198912

9011906375

main90119-06375

9011906560

main90119-06560

9046400601

main90464-00601

9046709074

main90467-09074

9046712026

main90467-12026

9095901399

main90959-01399

9095901413

main90959-01413

91512G0614

main91512-G0614

9153540628

main91535-40628

91621B0612

main91621-B0612

9165140620

main91651-40620

9616000600

main96160-00600

18 parts on this diagram · 2 diagrams in section
