Toyota MR2 — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02265i198912-199402

main99364-20820i199508

main99364-80820i199402-199508

27020BBELT, V(FOR ALTERNATOR)

main90916-02265i199001-199208

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02268i198912-199105

main90916-02365i199105-199311

L=875

main99364-00890i198912-199105

MITSUBOSHI

main99364-20890i199105-199208

MISTUBOSHI

main99364-50890i198912-199105

BANDO

main99364-70890i199105-199208

BANDO

main99364-80880i199311

L=880

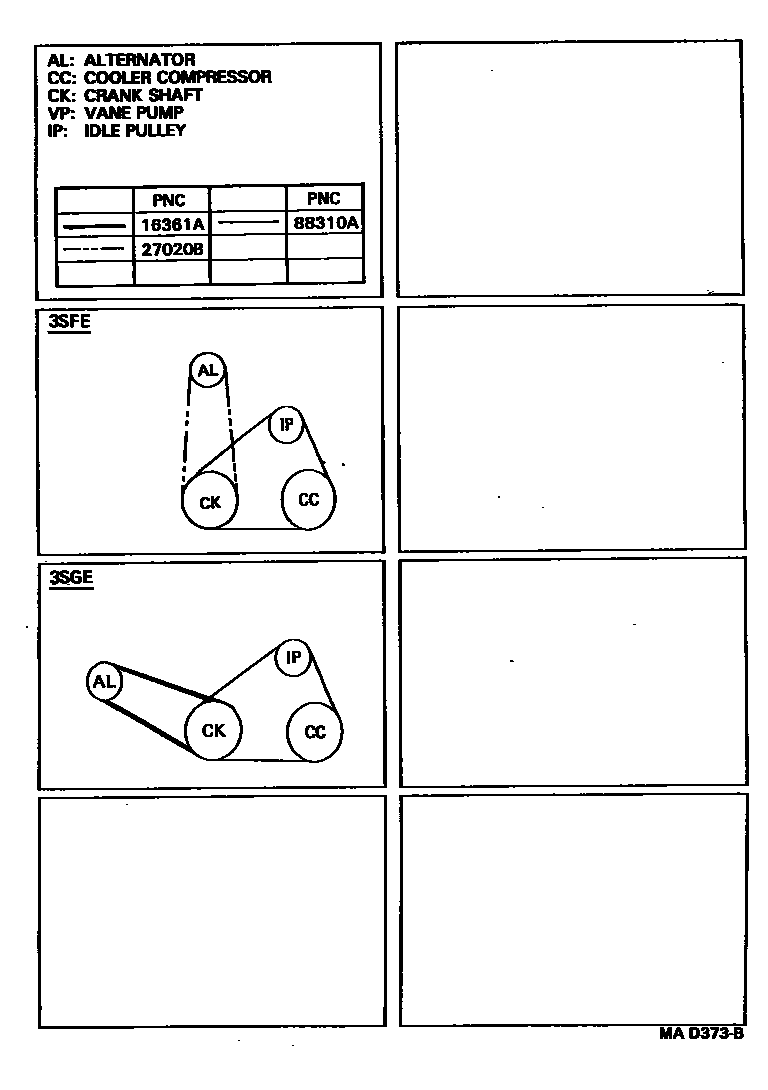

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota MR2

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota MR2. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR ALTERNATOR), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
