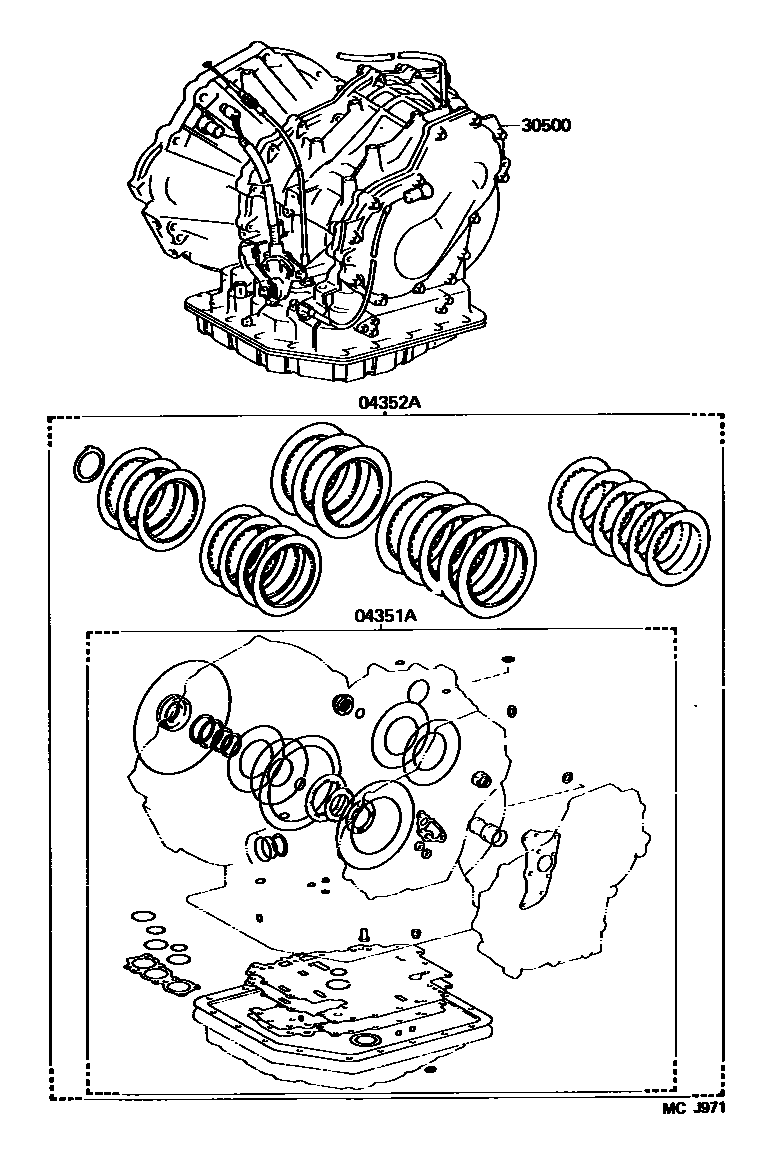

Toyota MR2 — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12060iSW21..4FC199001-199408

main04351-16090iSW21..4FC199408-199506

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-17030iSW21..4FC199001-199201

sub04352-17031

main04352-17040iSW21..4FC199201-199307

sub04352-17041

main04352-17041iSW21..4FC199307-199408

main04352-17050iSW21..4FC199408-199506

30500TRANSAXLE ASSY, AUTOMATIC

main30500-17080iSW21..4FC199001-199201

sub30500-17083

sub11356-74030

sub90119-06670

main30500-17111iSW21..4FC199201-199311

main30500-17140iSW21..4FC199311-199506

3 parts on this diagram · 1 diagram in section
