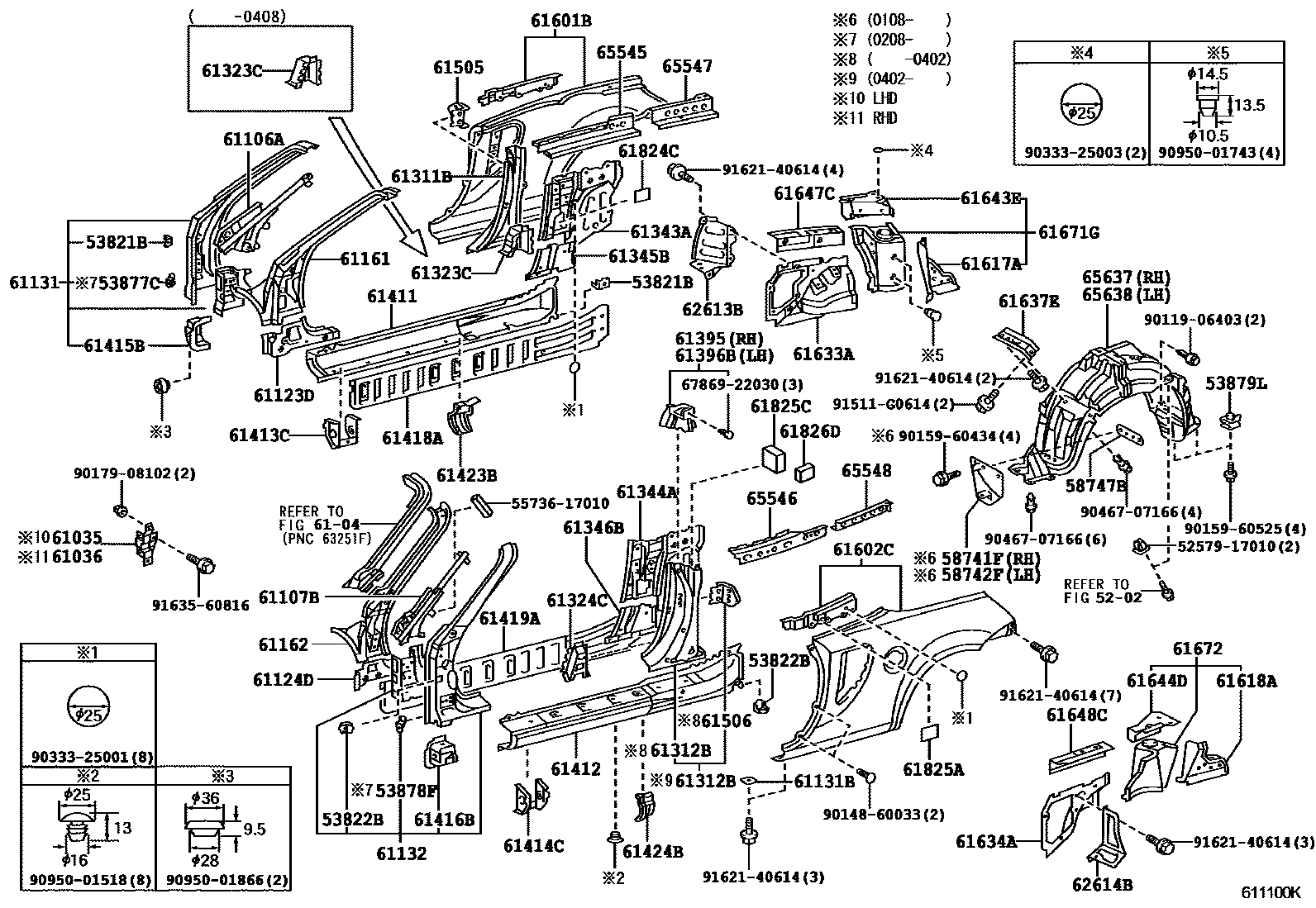

Toyota MR2 — SIDE MEMBER

5202

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iZZW30199912-200509

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iZZW30199912-200509

53877CBRACKET, FRONT FENDER LINER, RH

main53877-17020iZZW30200208-200509

53878FBRACKET, FRONT FENDER LINER, LH

main53878-17020iZZW30200208-200509

53879LRETAINER, FRONT FENDER LINER

main53879-16010iZZW30199912-200509

58741FPROTECTOR, REAR WHEEL EXTENSION, RH

main58741-17020iZZW30200108-200509

58742FPROTECTOR, REAR WHEEL EXTENSION, LH

main58742-17020iZZW30200108-200509

58747BPROTECTOR, QUARTER PANEL, REAR

main58747-17020iZZW30200108-200509

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-17010iZZW30..LHD199912-200509

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-17010iZZW30..RHD199912-200509

6104

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-17041iZZW30199912-200402

sub61106-17042

main61106-17042iZZW30200402-200509

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-17041iZZW30199912-200402

sub61107-17042

main61107-17042iZZW30200402-200509

61123DPANEL, COWL SIDE, INNER RH

main61123-17010iZZW30199912-200509

61124DPANEL, COWL SIDE, INNER LH

main61124-17010iZZW30199912-200509

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61103-17010iZZW30199912-200208

sub61103-17020

main61103-17020iZZW30200208-200509

61131BSEAL, FRONT FENDER

main53882-16030iZZW30199912-200509

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61104-17010iZZW30199912-200208

sub61104-17020

main61104-17020iZZW30200208-200509

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-17050iZZW30199912-200402

sub61023-17051

main61023-17051iZZW30200402-200509

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-17050iZZW30199912-200402

sub61024-17051

main61024-17051iZZW30200402-200509

61311BPILLAR, CENTER BODY, OUTER RH

main61301-17901iZZW30200402-200509

main61311-17010iZZW30199912-200402

sub61311-17011

sub65545-17011

61312BPILLAR, CENTER BODY, OUTER LH

main61302-17901iZZW30200402-200509

main61312-17010iZZW30199912-200402

sub61312-17011

sub65546-17011

61323CREINFORCEMENT, CENTER BODY PILLAR, LOWER RH

main61323-17010iZZW30199912-200402

main61605-17010iZZW30200402-200509

61324CREINFORCEMENT, CENTER BODY PILLAR, LOWER LH

main61324-17010iZZW30199912-200402

main61606-17010iZZW30200402-200509

61343APILLAR, CENTER BODY, INNER RH

main61307-17011iZZW30199912-200402

sub61307-17012

main61307-17012iZZW30200402-200509

61344APILLAR, CENTER BODY, INNER LH

main61308-17011iZZW30199912-200402

sub61308-17012

main61308-17012iZZW30200402-200509

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-17020iZZW30199912-200402

sub61345-17021

main61345-17021iZZW30200402-200509

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-17020iZZW30199912-200402

sub61346-17021

main61346-17021iZZW30200402-200509

61395SEAL, CENTER BODY PILLAR, RH

main61395-17020iZZW30199912-200509

61396BSEAL, CENTER BODY PILLAR, LH

main61396-17010iZZW30199912-200509

61411PANEL, ROCKER, OUTER RH

main61411-17060iZZW30199912-200509

61412PANEL, ROCKER, OUTER LH

main61412-17060iZZW30199912-200509

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-17030iZZW30199912-200509

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-17030iZZW30199912-200509

61415BEXTENSION, ROCKER, OUTER RH

main61415-17030iZZW30199912-200509

61416BEXTENSION, ROCKER, OUTER LH

main61416-17030iZZW30199912-200509

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-17020iZZW30199912-200509

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-17020iZZW30199912-200509

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-17020iZZW30199912-200509

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-17020iZZW30199912-200509

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-17010iZZW30199912-200402

sub61301-17901

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61506-17010iZZW30199912-200402

sub61302-17901

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-17180iZZW30199912-200509

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-17120iZZW30199912-200509

61617APANEL, QUARTER INNER, REAR RH

main61617-17030iZZW30199912-200509

61618APANEL, QUARTER, INNER REAR LH

main61618-17902iZZW30199912-200509

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-17904iZZW30199912-200509

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-17030iZZW30199912-200208

61637EBRACKET, QUARTER WHEEL HOUSE

main61637-17030iZZW30199912-200509

61643EREINFORCEMENT, REAR FENDER APRON, RH

main61643-17030iZZW30199912-200509

61644DREINFORCEMENT, REAR FENDER APRON, LH

main61644-17030iZZW30199912-200208

61647CREINFORCEMENT, WHEEL HOUSE, RH

main61647-17901iZZW30199912-200208

61648CREINFORCEMENT, WHEEL HOUSE, LH

main61648-17901iZZW30199912-200208

61671GSUPPORT, REAR SUSPENSION SPRING, RH

main61671-17903iZZW30199912-200509

61672BRACKET, REAR SEATBACK HINGE, LH

main61672-17901iZZW30199912-200509

61824CPAD, NOISE SHUTTER, NO.1

main61824-17010iZZW30199912-200310

sub61824-12090

main61824-17020iZZW30200310-200509

sub61824-12090

61825APLATE, NOISE CONTROL, NO.2

main61825-17040iZZW30199912-200509

61825CPAD, NOISE SHUTTER, NO.2

main61825-17050iZZW30199912-200509

61826DPLATE, NOISE CONTROL, NO.3

main61826-17020iZZW30199912-200509

62613BCOVER, QUARTER WHEEL HOUSE, RH

main62613-17010iZZW30199912-200509

62614BCOVER, QUARTER WHEEL HOUSE, LH

main62604-17010iZZW30199912-200509

65545REINFORCEMENT, SIDE PANEL, NO.1

main65545-17010iZZW30199912-200402

sub65545-17011

sub61301-17901

main65545-17011iZZW30200402-200509

65546REINFORCEMENT, SIDE PANEL, NO.2

main65546-17010iZZW30199912-200402

sub65546-17011

sub61312-17011

main65546-17011iZZW30200402-200509

65547REINFORCEMENT, SIDE PANEL, NO.3

main65547-17010iZZW30199912-200509

65548REINFORCEMENT, SIDE PANEL, NO.4

main65548-17010iZZW30199912-200509

65637LINER, REAR WHEEL HOUSE, RH

main65637-17010iZZW30199912-200108

main65637-17020iZZW30200108-200509

65638LINER, REAR WHEEL HOUSE, LH

main65638-17010iZZW30199912-200108

main65638-17020iZZW30200108-200509

5257917010RETAINER, REAR BUMPER SIDE, NO.3

main52579-17010

5573617010SEAL, WATER GUARD PLATE

main55736-17010

6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-22030

9011906403

main90119-06403

9014860033

main90148-60033

9015960434

main90159-60434

9015960525

main90159-60525

9017908102

main90179-08102

9033325001

main90333-25001

9033325003

main90333-25003

9046707166

main90467-07166

9095001518

main90950-01518

9095001743

main90950-01743

9095001866

main90950-01866

91511G0614

main91511-G0614

9162140614

main91621-40614

9163560816

main91635-60816

85 parts on this diagram · 1 diagram in section
