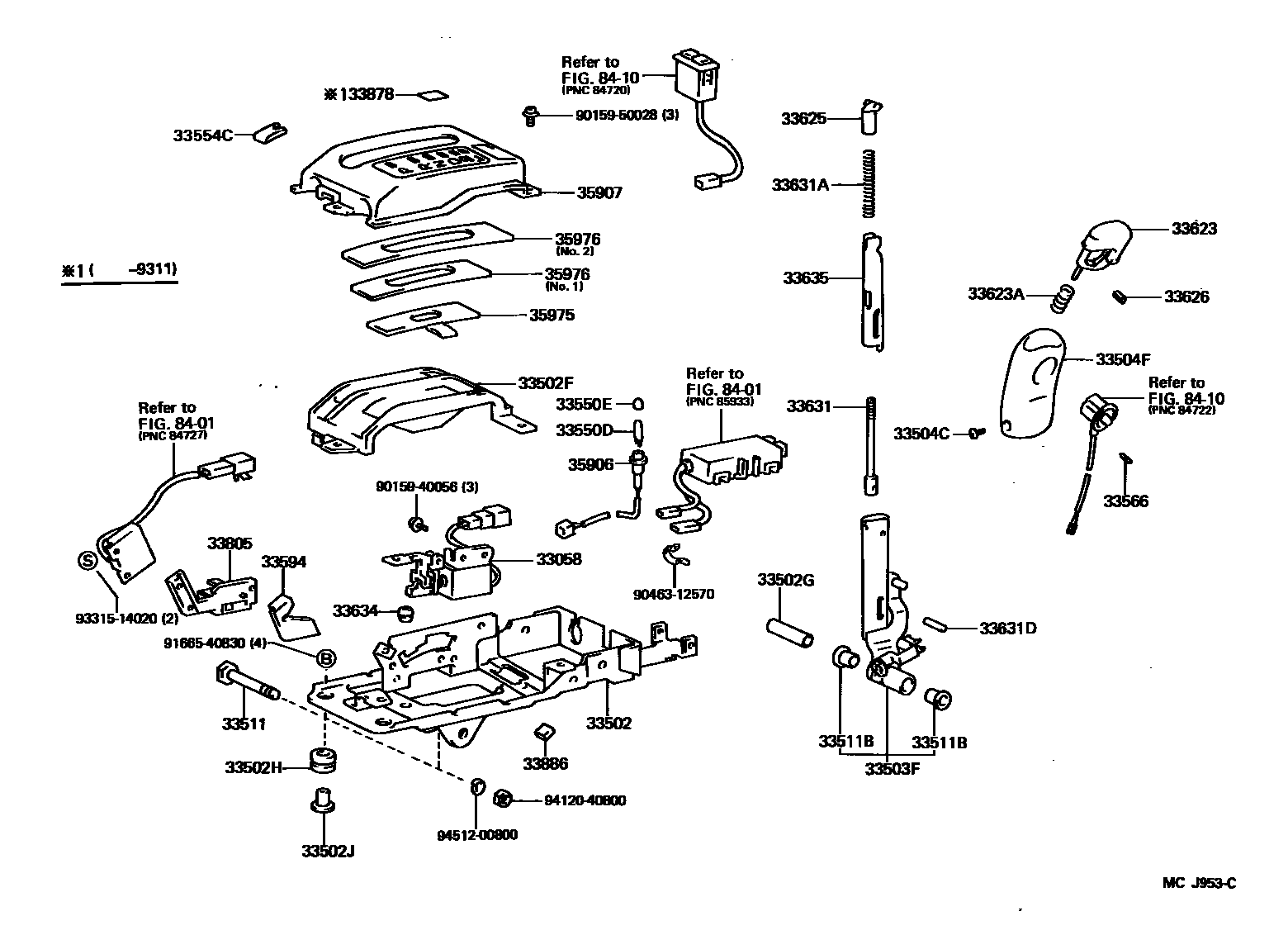

Toyota MR2 — SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)
33502GCOLLAR (FOR SHIFT LEVER PLATE)
33502HBUSH, NO.1 (FOR SHIFT LEVER PLATE)
33502JBUSH, NO.2 (FOR SHIFT LEVER PLATE)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM2#
POWER & LUXURY & LEATHER PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM0#,2#,8#
LEATHER,BLACK,TRIM0#,2#,8#
LEATHER,BLACK,TRIM2#,8#
LEATHER,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,8#
BLACK,TRIM2#
BLACK,TRIM0#,2#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33550DBULB, POSITION INDICATOR LAMP
14V 1.12W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33566PIN, SHIFT LEVER STOP
33594PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33623BUTTON, SHIFT LEVER KNOB
BLACK,TRIM2#
BLACK,TRIM0#,2#,8#
BLACK,TRIM0#,2#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33634PROTECTOR, WIRE
33635GUIDE, WIRE (FOR SHIFT LEVER)
33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)
33878LABEL, SHIFT LOCK INFORMATION, NO.2
33886STOPPER, SHIFT LEVER
35906WIRE SUB-ASSY, INDICATOR LAMP
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
NO.1
NO.2
8401
8410
9015940056
main90159-40056
9015950028
main90159-50028
9046312570
main90463-12570
9166540830
main91665-40830
9331514020
main93315-14020
9412040800
main94120-40800
9451200800
main94512-00800
41 parts on this diagram · 5 diagrams in section
