Toyota MR2 — REAR SIDE MARKER LAMP

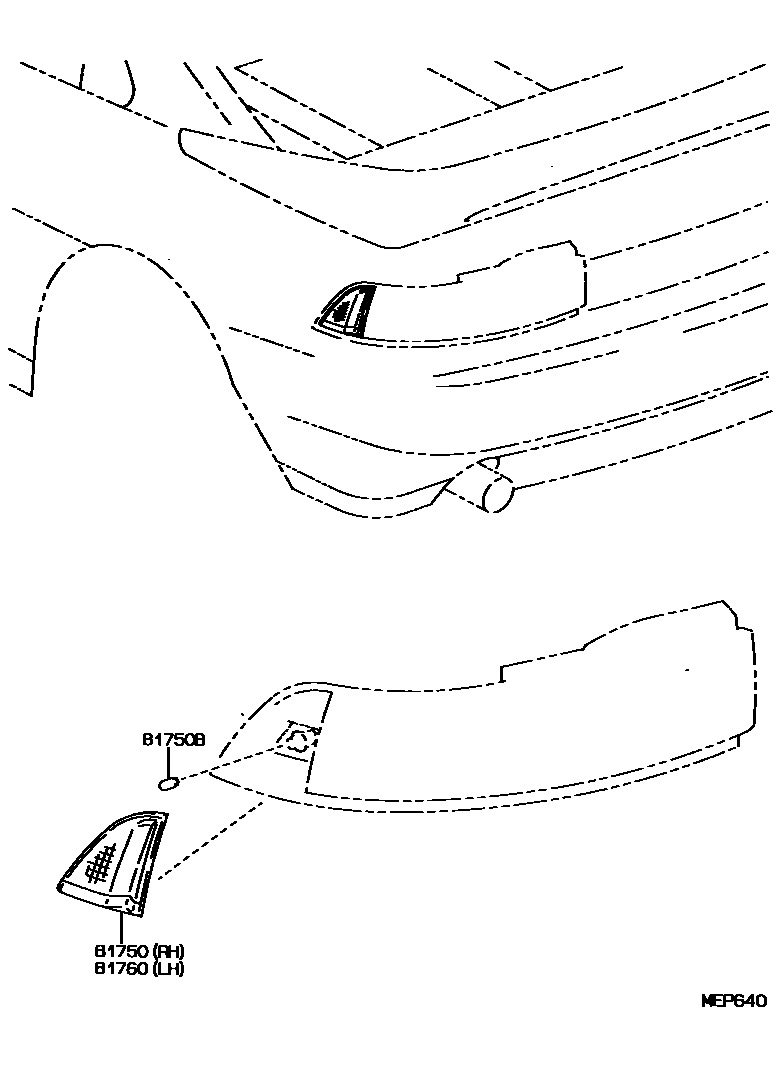

Parts diagram

81750LAMP ASSY, REAR SIDE MARKER, RH

main81750-17020i199001-199311

main81750-17040i199311-199506

81750BBULB, REAR SIDE MARKER LAMP

main90981-11020i199001-199506

12V 3.8W

81760LAMP ASSY, REAR SIDE MARKER, LH

main81760-17020i199001-199311

main81760-17040i199311-199506

3 parts on this diagram · 1 diagram in section
