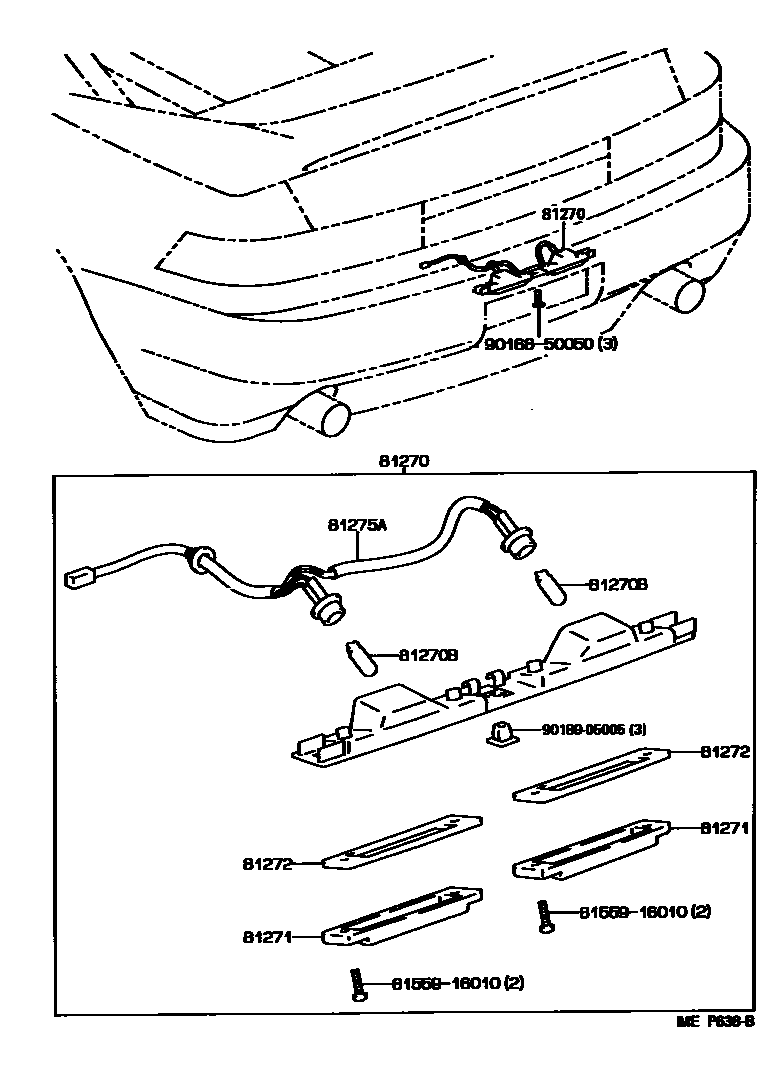

Toyota MR2 — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-17030iSW2#199001-199506

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iSW2#199001-199506

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-17030iSW2#199001-199506

81272GASKET, LICENSE PLATE LAMP LENS

main81272-17030iSW2#199001-199506

81275ACORD, LICENSE PLATE LAMP

main81275-17030iSW2#199001-199202

sub81275-24030

main81275-24030iSW2#199202-199506

8155916010MOULDING, REAR COMBINATION LAMP, RH

main81559-16010

9016850050

main90168-50050

9018905005

main90189-05005

8 parts on this diagram · 1 diagram in section
