Toyota MR2 — PARTIAL ENGINE ASSEMBLY

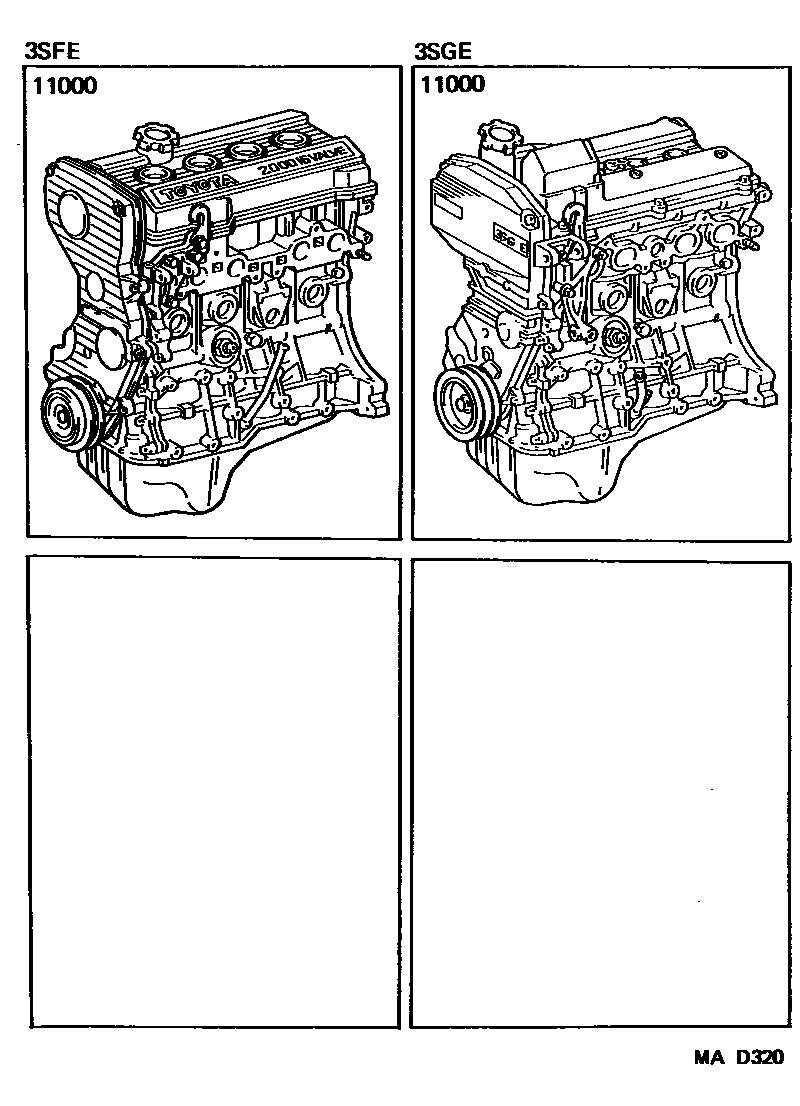

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-74360i198912-199005
main19000-74361i199005-199112
sub19000-74170
main19000-74460i199112-199208
main19000-88372i198912-199108
sub16268-88364
sub16281-88360
sub90467-20011
main19000-88373i198912-199108
sub16268-88364
sub16281-88360
sub90467-20011
main19000-88394i199108-199311
main19000-88604i199311

1 parts on this diagram · 1 diagram in section
