Toyota MR2 — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12317STAY, ENGINE MOUNTING, RH
12318STAY, ENGINE MOUNTING, LH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
12511ABUSH, ALTERNATOR BRACKET
12514ASLIDER, FAN BELT ADJUSTING
9010510051
main90105-10051
9010510057
main90105-10057
9010510086
main90105-10086
9010510215
main90105-10215
9010510291
main90105-10291
9010510301
main90105-10301
9010512095
main90105-12095
9010512115
main90105-12115
9010512211
main90105-12211
9011908850
main90119-08850
9011908888
main90119-08888
9011910437
main90119-10437
9011910599
main90119-10599
9011910600
main90119-10600
9011910602
main90119-10602
9011910645
main90119-10645
9017906007
main90179-06007
9017910092
main90179-10092
9017910095
main90179-10095
9017910108
main90179-10108
9017912025
main90179-12025
9017912069
main90179-12069
9161160816
main91611-60816
9161161025
main91611-61025
9161161040
main91611-61040
9212261025
main92122-61025

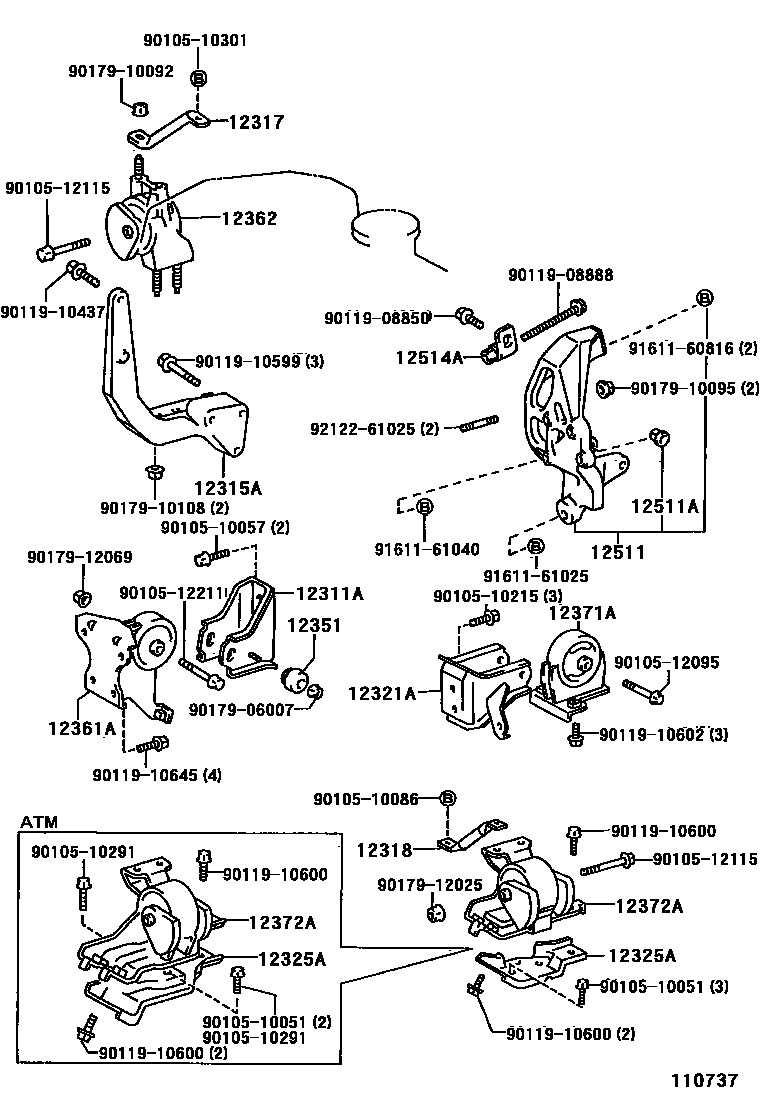

40 parts on this diagram · 2 diagrams in section
