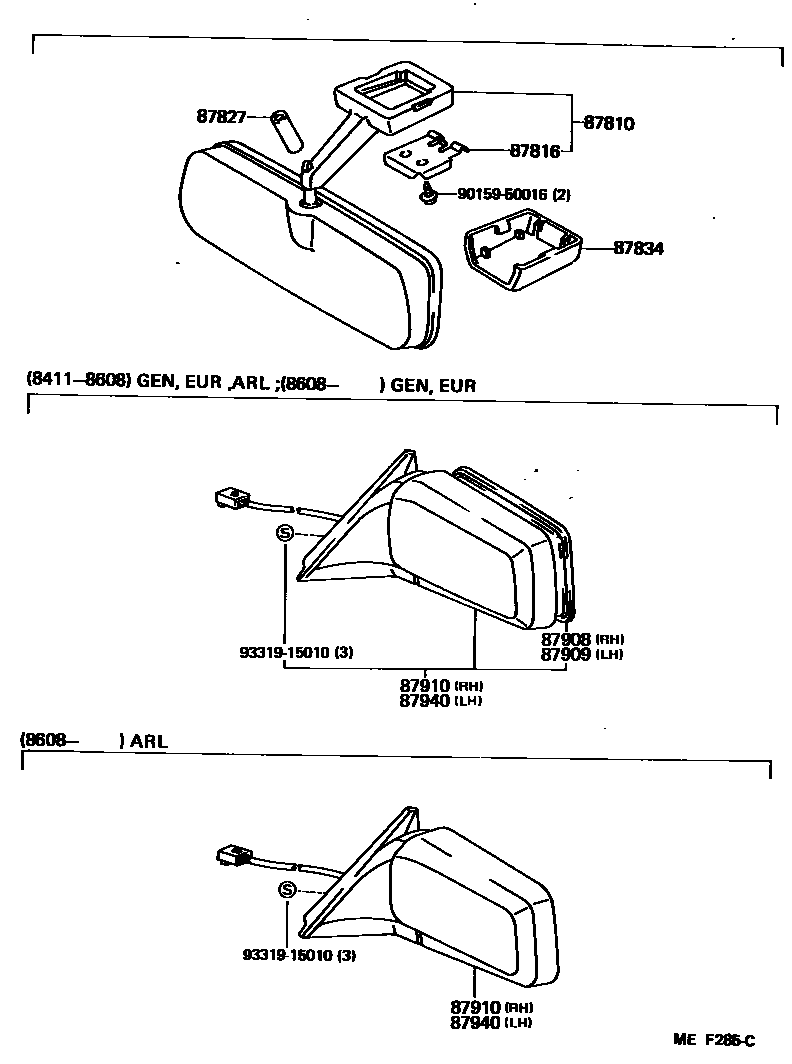

Toyota MR2 — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-17020-01i198411-198606

BLACK,BLACK,TRIM2#

main87810-17021-01i198606-198803

BLACK,BLACK,TRIM2#

main87810-17021-01i198803-198912

BLACK,TRIM2#

main87810-17021-04i198803-198912

DARK BLUE,TRIM8#

main87810-17021-04i198608-198803

BLUE,DARK BLUE,TRIM8#

main87810-17021-05i198803-198808

DARK BEIGE,TRIM4#

main87810-17021-05i198608-198803

BEIGE,DARK BEIGE,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198411-198912

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010i198411-198912

L=44

main87828-32010i198411-198912

L=47

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-11i198803-198808

BLACK,TRIM2#

main87834-20080-11i198608-198803

BLACK,BLACK,TRIM2#

main87834-20080-21i198808-198912

BLACK,TRIM2#

main87834-20080-33i198411-198608

LIGHT GRAY,GRAY,TRIM2#

main87834-20080-44i198803-198912

DARK BLUE,TRIM8#

main87834-20080-44i198608-198803

BLUE,DARK BLUE,TRIM8#

main87834-20080-55i198803-198808

DARK BEIGE,TRIM4#

main87834-20080-55i198608-198803

BEIGE,DARK BEIGE,TRIM4#

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87931-17030i198411-198912

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87961-17060i198411-198912

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-17032i198608-198912

main87910-17051i198608-198912

main87910-17120i198708-198912

main87910-80142i198411-198608

main87910-80144i198411-198608

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-17051i198608-198912

main87940-17062i198608-198912

main87940-17130i198708-198912

main87940-80144i198411-198608

main87940-80152i198411-198608

9015950016

main90159-50016

9331915010

main93319-15010

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota MR2

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota MR2. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH.
