Toyota MR2 — METER

0001 1 0002 1 0003 1

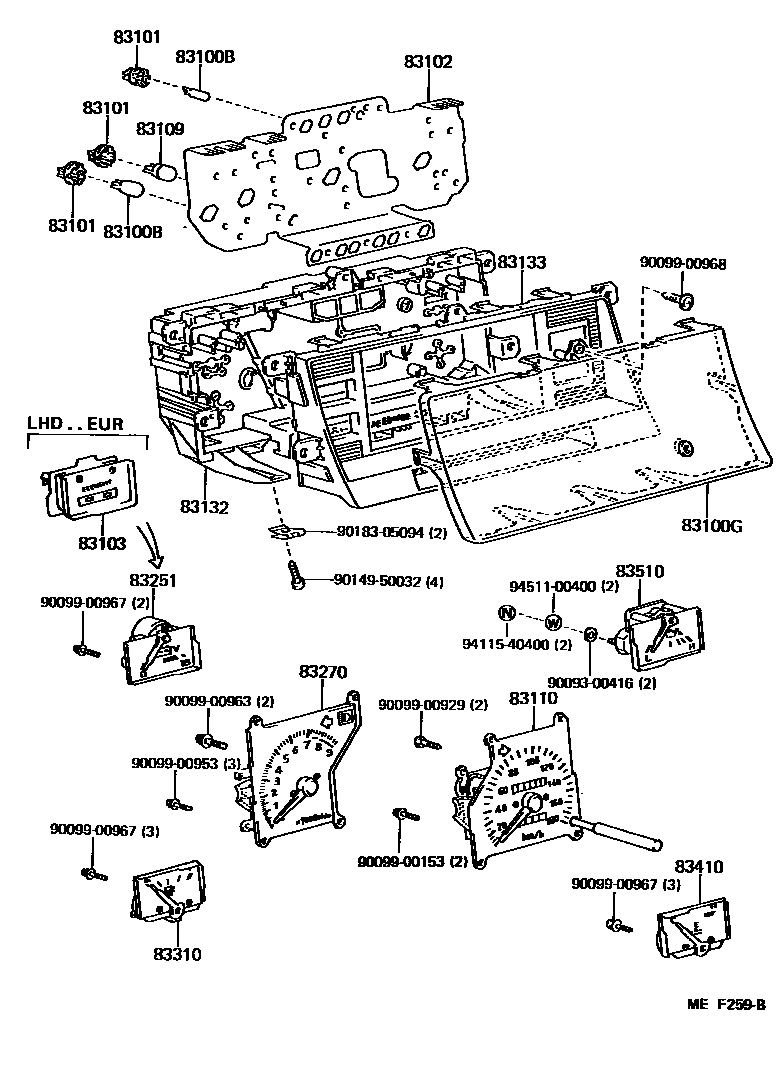

83100BBULB, COMBINATION METER, NO.1

main90981-11018×5iAW11..ARL198803-198912

12V 1.2W W/O SOCKET

main99132-12034×4iAW11198411-198803

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-17010iAW11198411-198912

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×7iAW11198411-198803

12V 3.4W

main83101-14040×4iAW11..ARL198803-198912

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-17170iAW11..LHD..EUR198411-198912

main83247-17190iAW11..GEN198411-198501

main83247-17290iAW11..LHD..GEN;AW11..RHD..(EUR,GEN)198803-198912

main83247-17470iAW11..ARL198708-198912

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-17270iAW11..LHD..EUG198411-198608

ED MONITOR

main83247-17370iAW11..LHD..EUR198608-198803

ED MONITOR

83109BULB, COMBINATION METER, NO.2

main83109-24030×3iAW11198411-198803

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-17050iAW11..GEN198411-198608

KM

main83110-17051iAW11..GEN198803-198912

KM

main83110-17060iAW11..GEN198411-198608

KM & MILE

main83110-17061iAW11..GEN198608-198803

KM & MILE

main83110-17090iAW11..ARL198708-198912

83132CASE, COMBINATION METER

main83132-17090iAW11..LHD..EUR198411-198912

main83132-17110iAW11..GEN198411-198501

main83132-17130iAW11..GEN198608-198803

SPEEDOMETER;KM & MILE

main83132-17150iAW11..ARL198708-198912

83133PLATE, COMBINATION METER, NO.1

main83133-17010iAW11198411-198912

83251METER, VOLTAGE

main83251-17010iAW11..GEN198411-198608

main83251-17030iAW11..ARL,GEN198608-198803

83270TACHOMETER ASSY, ENGINE

main83242-17030iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198608

main83242-17110iAW11..FRG198511-198608

main83242-17150iAW11198608-198803

main83242-17210iAW11..FRG198608-198912

83310GAGE ASSY, FUEL RECEIVER

main83243-17010iAW11198411-198608

main83243-17030iAW11198608-198912

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-17010iAW11198411-198608

main83244-17030iAW11198608-198912

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-17010iAW11198411-198608

main83246-17030iAW11198608-198912

9009300416

main90093-00416

9009900153

main90099-00153

9009900929

main90099-00929

9009900953

main90099-00953

9009900963

main90099-00963

9009900967

main90099-00967

9009900968

main90099-00968

9014950032

main90149-50032

9018305094

main90183-05094

9411540400

main94115-40400

9451100400

main94511-00400
