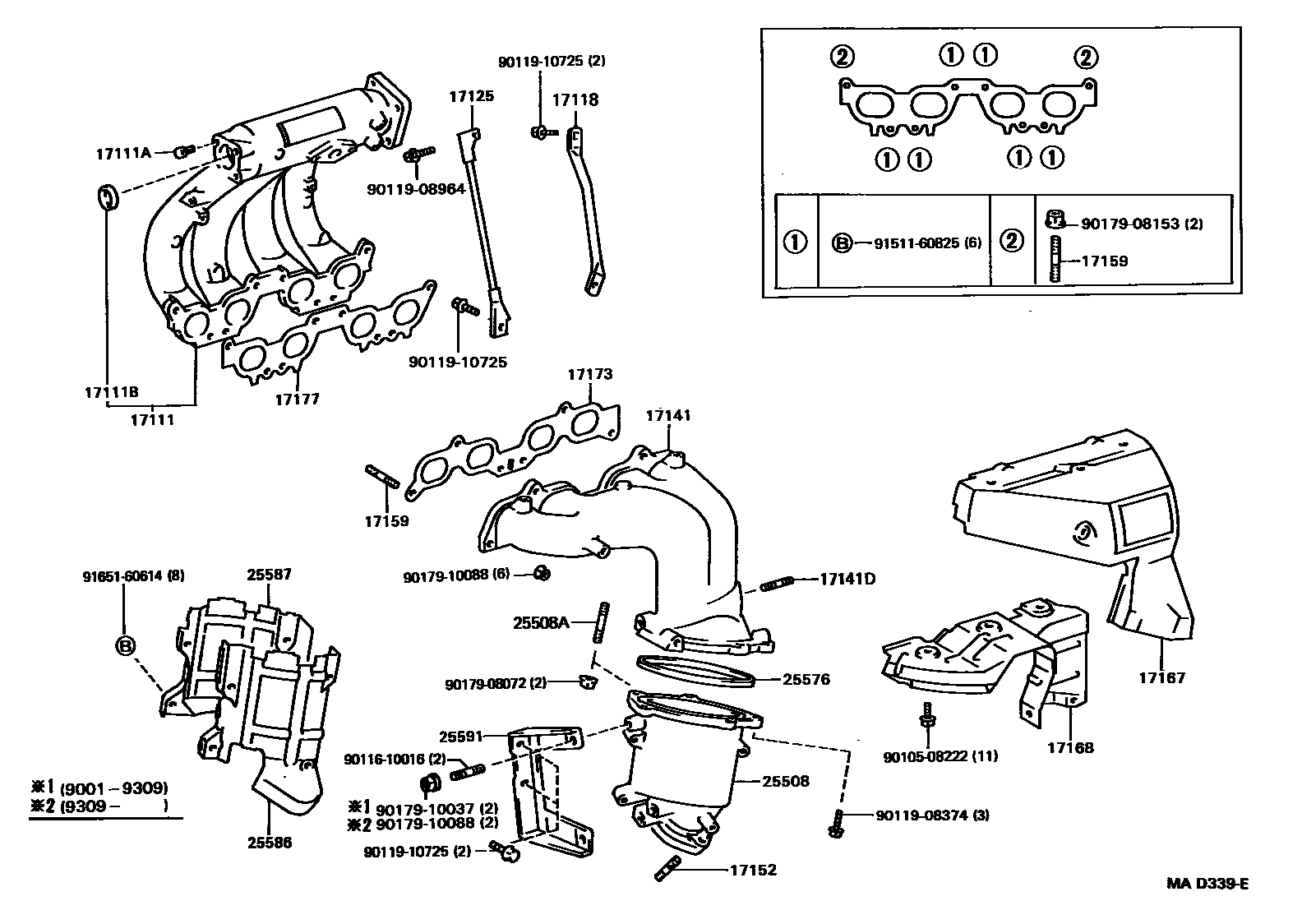

Toyota MR2 — MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-74071i5SFE..SW21199001-199201

main17101-74180i5SFE..SW21199201-199506

main17101-88385i3SGTE..SW20199001-199506

17111APLUG, NO.1

main90345-51006i5SFE..SW21199001-199506

main96411-43000i3SGTE..SW20199001-199506

17111BPLUG, NO.2

main96411-41400i3SGTE..SW20199001-199506

main96411-44000i5SFE..SW21199001-199506

17118STAY, MANIFOLD

main17118-74260i5SFE..SW21199201-199506

main17118-88382i3SGTE..SW20199001-199403

sub17118-88480

main17118-88480i3SGTE..SW20199403-199506

17125STAY, SURGE TANK, NO.1

main17125-74021i5SFE..SW21199001-199201

main17125-74110i5SFE..SW21199201-199311

main17125-88381i3SGTE..SW20199001-199506

17141MANIFOLD, EXHAUST

main17141-74041i5SFE..SW21199001-199506

main17141-88381i3SGTE..SW20199001-199201

main17141-88382i3SGTE..SW20199201-199506

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08253i5SFE..SW21199001-199506

main90116-08326i3SGTE..SW20199001-199506

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i5SFE..SW21199001-199506

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08186i3SGTE..SW20199001-199506

INTAKE MANIFOLD

main90116-10063i5SFE..SW21199001-199506

EXHAUST MANIFOLD

main90116-10113i3SGTE..SW20199001-199506

EXHAUST MANIFOLD

main92122-60822i5SFE..SW21199001-199506

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-74140i5SFE..SW21199001-199403

sub17167-74141

main17167-74141i5SFE..SW21199403-199506

main17167-88381i3SGTE..SW20199001-199506

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-74020i5SFE..SW21199001-199506

main17168-88382i3SGTE..SW20199001-199506

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-74040i5SFE..SW21199001-199506

main17173-88381i3SGTE..SW20199001-199201

main17173-88382i3SGTE..SW20199201-199506

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-74041i5SFE..SW21199001-199006

sub17177-74070

main17177-74070i5SFE..SW21199006-199506

main17177-88381i3SGTE..SW20199001-199506

25508CONVERTER SUB-ASSY, MANIFOLD

main25508-74090i5SFE..SW21199001-199506

main25508-74100i5SFE..SW21..USA199001-199506

CALIFORNIA SPEC

main25508-74110i3SGTE..SW20199001-199506

25508ABOLT, STUD(FOR MANIFOLD CONVERTER)

main90116-08171i3SGTE,5SFE..SW2#199001-199506

25576GASKET, MANIFOLD CONVERTER

main25576-74020i3SGTE,5SFE..SW2#199001-199110

sub25576-74030

main25576-74030i3SGTE,5SFE..SW2#199110-199506

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-74011i5SFE..SW21199001-199506

sub25586-74060

main25586-74040i3SGTE..SW20199001-199506

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-74011i5SFE..SW21199001-199506

sub25587-74060

main25587-74040i3SGTE..SW20199001-199506

25591BRACKET, MANIFOLD SUPPORT

main25591-74011i5SFE..SW21199001-199506

9010508222

main90105-08222

9011610016

main90116-10016

9011908374

main90119-08374

9011908964

main90119-08964

9011910725

main90119-10725

9017908072

main90179-08072

9017908153

main90179-08153

9017910037

main90179-10037

9017910088

main90179-10088

9151160825

main91511-60825

9165160614

main91651-60614

30 parts on this diagram · 3 diagrams in section
