Toyota MR2 — IGNITION COIL & SPARK PLUG / GLOW PLUG

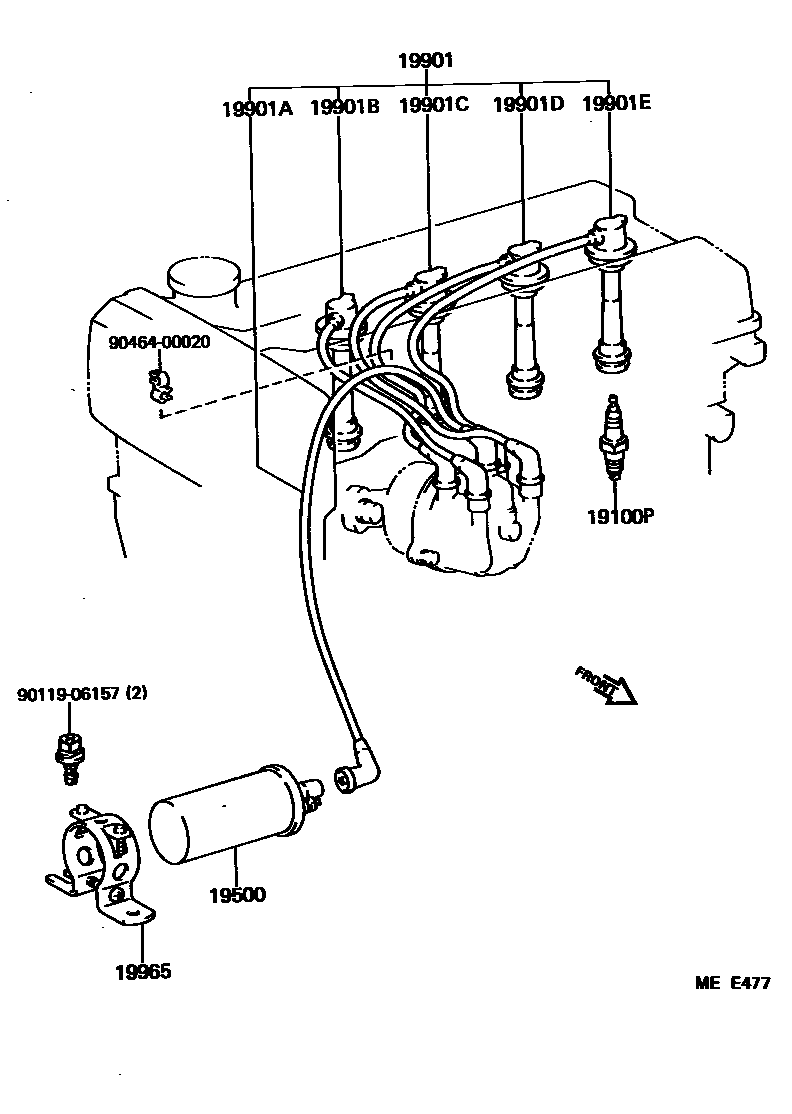

Parts diagram

19100PPLUG, SPARK

main90919-01121×4i198803-198912

PQ16R

main90919-01131×4i198803-198912

Q20R-U11

19500COIL ASSY, IGNITION

main90919-02113i198411-198912

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21350i198411-198608

main90919-21368i198511-198608

main90919-21411i198708-198912

main90919-21412i198708-198803

main90919-21466i198803-198912

19901ACORD, COIL RESISTIVE

main90919-13239i198411-198708

main90919-13276i198708-198803

main90919-13277i198708-198803

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12550i198411-198608

main90919-12602i198511-198608

main90919-12733i198803-198912

main90919-12737i198708-198803

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12551i198411-198608

main90919-12603i198511-198608

main90919-12734i198708-198803

main90919-12738i198708-198803

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12552i198411-198608

main90919-12604i198511-198608

main90919-12735i198803-198912

main90919-12739i198803-198912

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12553i198411-198608

main90919-12605i198511-198608

main90919-12736i198803-198912

main90919-12740i198708-198803

19965BAND, IGNITION COIL, NO.1

main90919-03086i198411-198912

main90919-03098i198511-198803

9011906157

main90119-06157

9046400020

main90464-00020

11 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota MR2

This section contains 11 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota MR2. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE, CORD, SPARK PLUG RESISTIVE, NO.1.
