Toyota MR2 — FUEL INJECTION SYSTEM

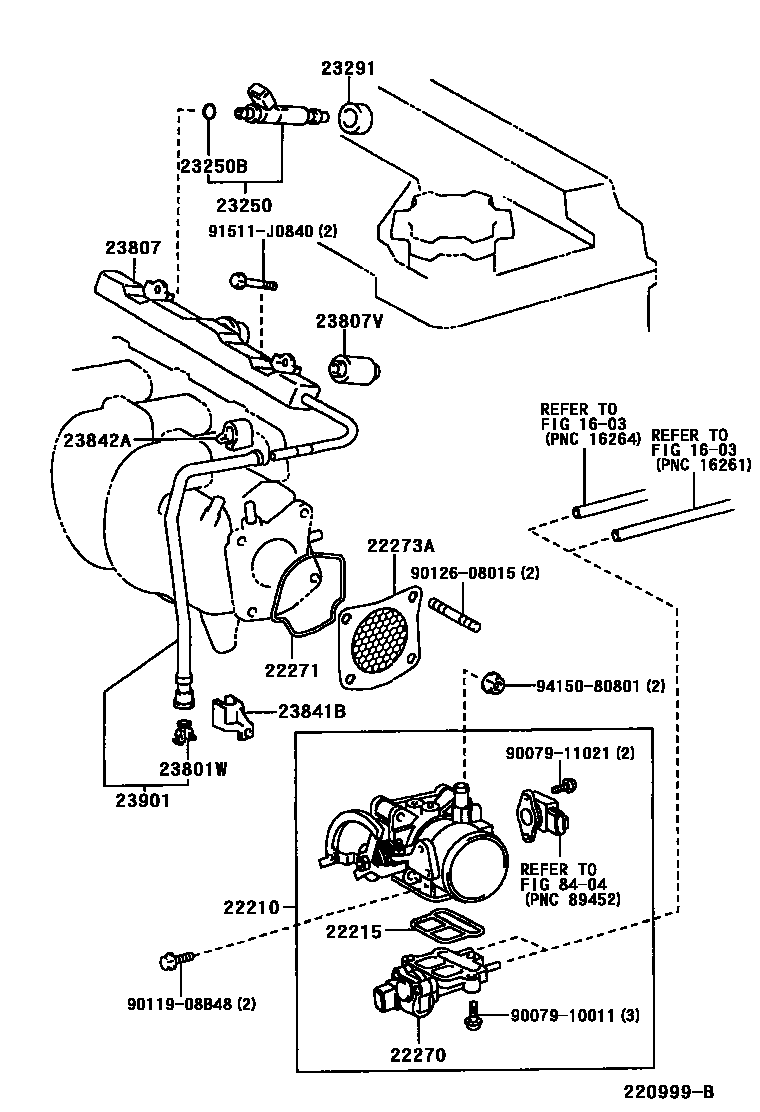

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22030-22010i200008-200107

main22030-22020i200107-200509

main22210-22100i199912-200509

22215GASKET, THROTTLE BODY COVER

main22215-7A680i199912-200509

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-22020i199912-200303

main22270-22021i200303-200509

22271GASKET, THROTTLE BODY

main22271-22040i199912-200509

22273AGASKET, THROTTLE BODY, NO.2

main22273-22010i199912-200509

23250INJECTOR ASSY, FUEL

main23209-22040i199912-200509

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i199912-200509

23291INSULATOR, INJECTOR VIBRATION

main23291-22020i199912-200509

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i199912-200509

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22040i199912-200509

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08055i199912-200509

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-22030i199912-200509

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i199912-200509

23901TUBE SUB-ASSY, FUEL

main23901-22070i199912-200509

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910011

main90079-10011

9007911021

main90079-11021

9011908B48

main90119-08B48

9012608015

main90126-08015

91511J0840

main91511-J0840

9415080801

main94150-80801

22 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota MR2

This section contains 40 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota MR2. Key components include: RADIATOR & WATER OUTLET, CLAMP, HOSE(FOR WATER HOSE), LEVER ASSY, THROTTLE W/SENSOR, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER.
