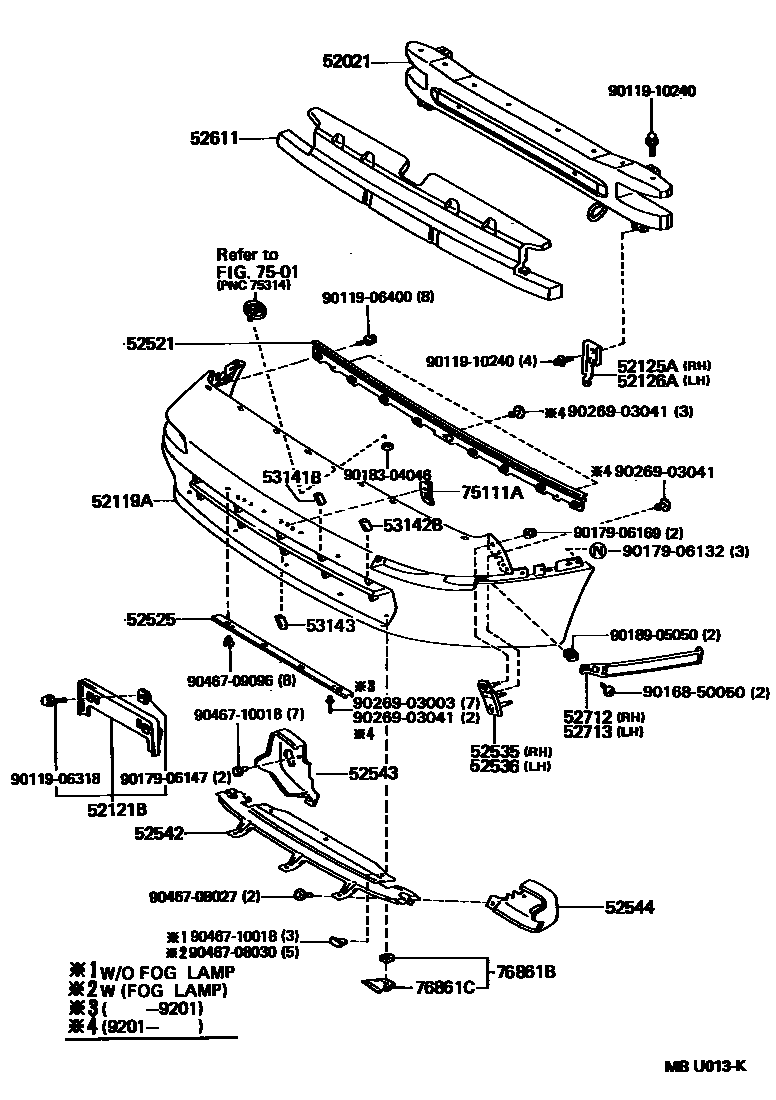

Toyota MR2 — FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52119ACOVER, FRONT BUMPER
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52125ABRACKET, FOG LAMP MOUNTING, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52542SEAL, FRONT BUMPER, CENTER
52543SEAL, FRONT BUMPER SIDE, RH
W(FRONT FOG LAMP)
52544SEAL, FRONT BUMPER SIDE, LH
W(FRONT FOG LAMP)
52611ABSORBER, FRONT BUMPER ENERGY
52712MOULDING, FRONT BUMPER SIDE, RH
52713PLUG, FRONT BUMPER MOULDING
53141BGARNISH, RADIATOR GRILLE, NO.1
53142BRADIATOR GRILLE GARNISH, NO.2
53143GARNISH, RADIATOR GRILLE, NO.3
7501
75111ABRACKET, FRONT LICENSE PLATE
76861CRETAINER, FRONT SPOILER, LOWER NO.2
9011906318
main90119-06318
9011906400
main90119-06400
9011910240
main90119-10240
9016850050
main90168-50050
9017906132
main90179-06132
9017906147
main90179-06147
9017906169
main90179-06169
9018304046
main90183-04046
9018905050
main90189-05050
9026903003
main90269-03003
9026903041
main90269-03041
9046708027
main90467-08027
9046708030
main90467-08030
9046709096
main90467-09096
9046710018
main90467-10018
37 parts on this diagram · 1 diagram in section
