Toyota MR2 — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH
57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57459MEMBER, FRONT FLOOR CROSS, NO.2
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH
57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH
57701ABRACKET SUB-ASSY, REAR STRUT BAR, RH
57702ABRACKET SUB-ASSY, REAR STRUT BAR, LH
6101
5828550010PLATE, PARKING BRAKE DUST SET
main58285-50010
9011908853
main90119-08853
9033315002
main90333-15002
9033325001
main90333-25001
9033330002
main90333-30002
9033330004
main90333-30004
9033904018
main90339-04018
9090119009
main90901-19009
9095001025
main90950-01025
9095001059
main90950-01059
9095001060
main90950-01060
9095001065
main90950-01065
9095001119
main90950-01119
9095001259
main90950-01259
9095001426
main90950-01426
9165160612
main91651-60612
91651A0614
main91651-A0614
9165615002
main91656-15002
9165640818
main91656-40818
9165660818
main91656-60818

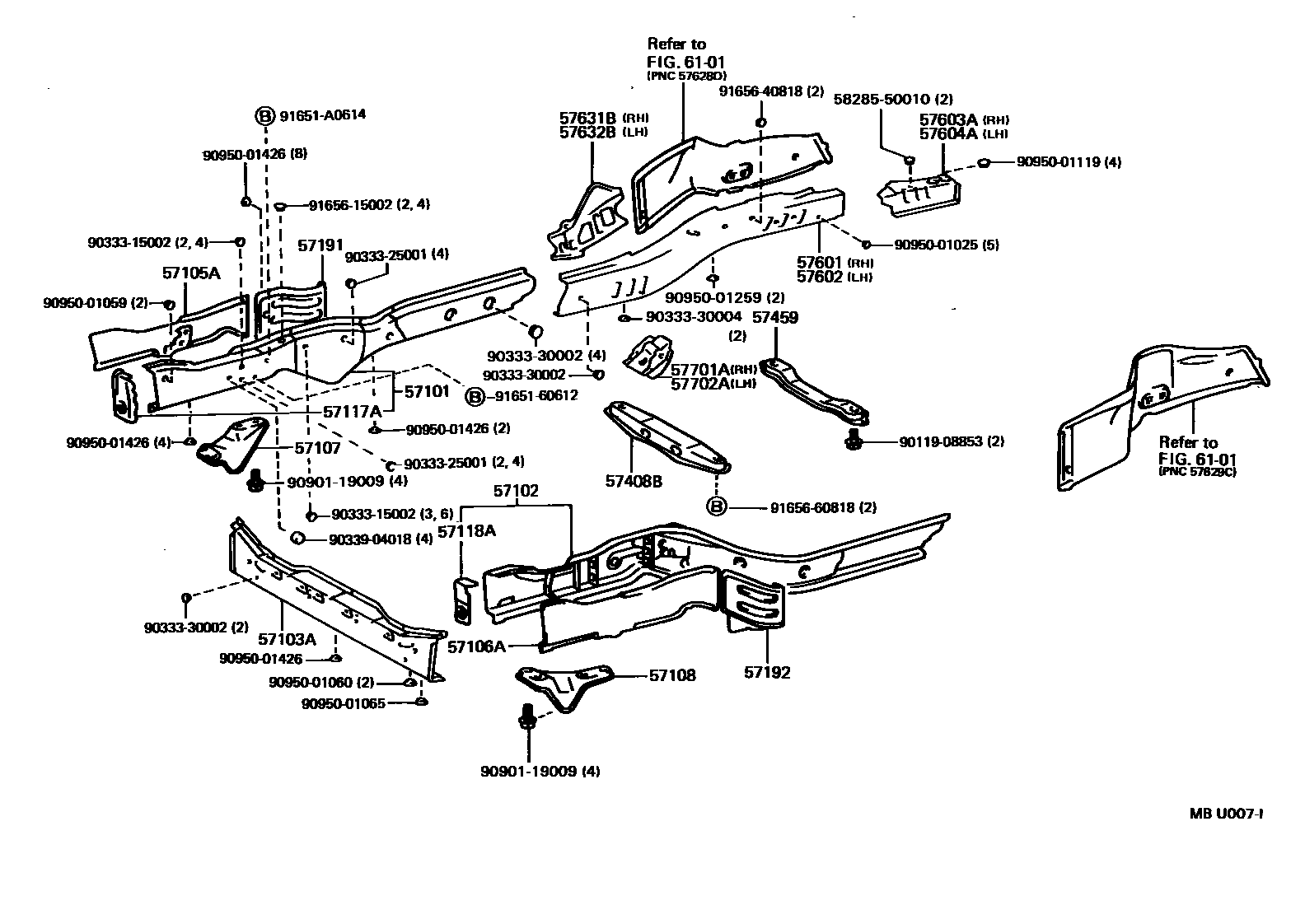

42 parts on this diagram · 1 diagram in section
