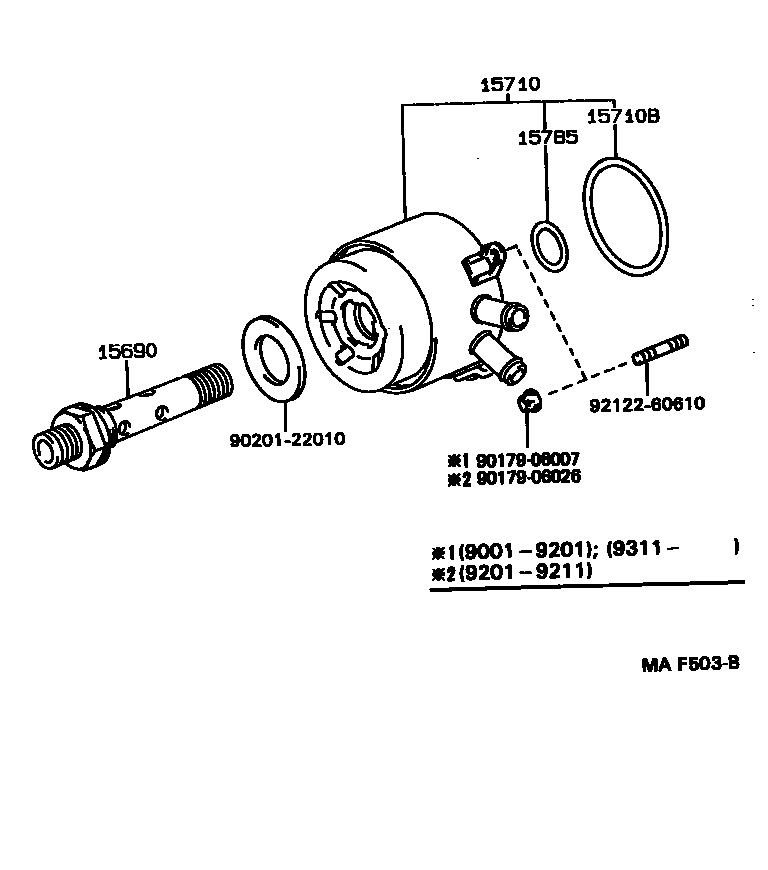

Toyota MR2 — ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-74011i5SFE..SW21199001-199201

main15690-74020i5SFE..SW21199201-199506

main15690-88380i3SGTE..SW20199001-199506

15710COOLER ASSY, OIL

main15700-88380i3SGTE..SW20199001-199506

main15710-74022i5SFE..SW21199001-199201

main15710-74030i5SFE..SW21199201-199506

15710BRING, O(FOR OIL COOLER)

main90301-52002i5SFE..SW21199001-199412

sub90301-52006

main90301-52006i5SFE..SW21199412-199506

15785GASKET, OIL COOLER

main15785-35010i5SFE..SW21199001-199506

9017906007

main90179-06007

9017906026

main90179-06026

9020122010

main90201-22010

9212260610

main92122-60610

8 parts on this diagram · 2 diagrams in section
