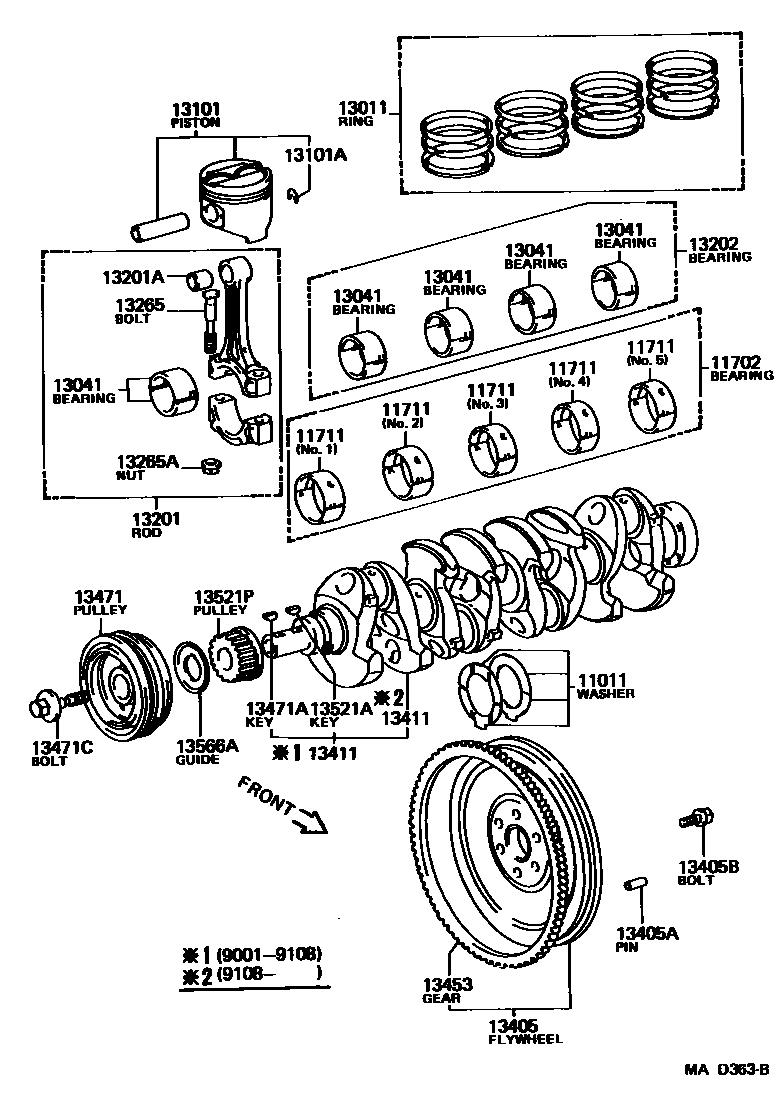

Toyota MR2 — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
MARK 1,NO.1,2,4,5 JOURNAL
MARK 1,NO.1,2,4,5
MARK 2,NO.1,2,4,5 JOURNAL
MARK 2,NO.1,2,4,5
MARK 3,NO.1,2,4,5
MARK 3,NO.1,2,4,5 JOURNAL
MARK 4,NO.1,2,4,5
MARK 4,NO.1,2,4,5 JOURNAL
MARK 5,NO.1,2,4,5
MARK 5,NO.1,2,4,5 JOURNAL
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
sub90520-22025
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13566AGUIDE, TIMING BELT
23 parts on this diagram · 2 diagrams in section
