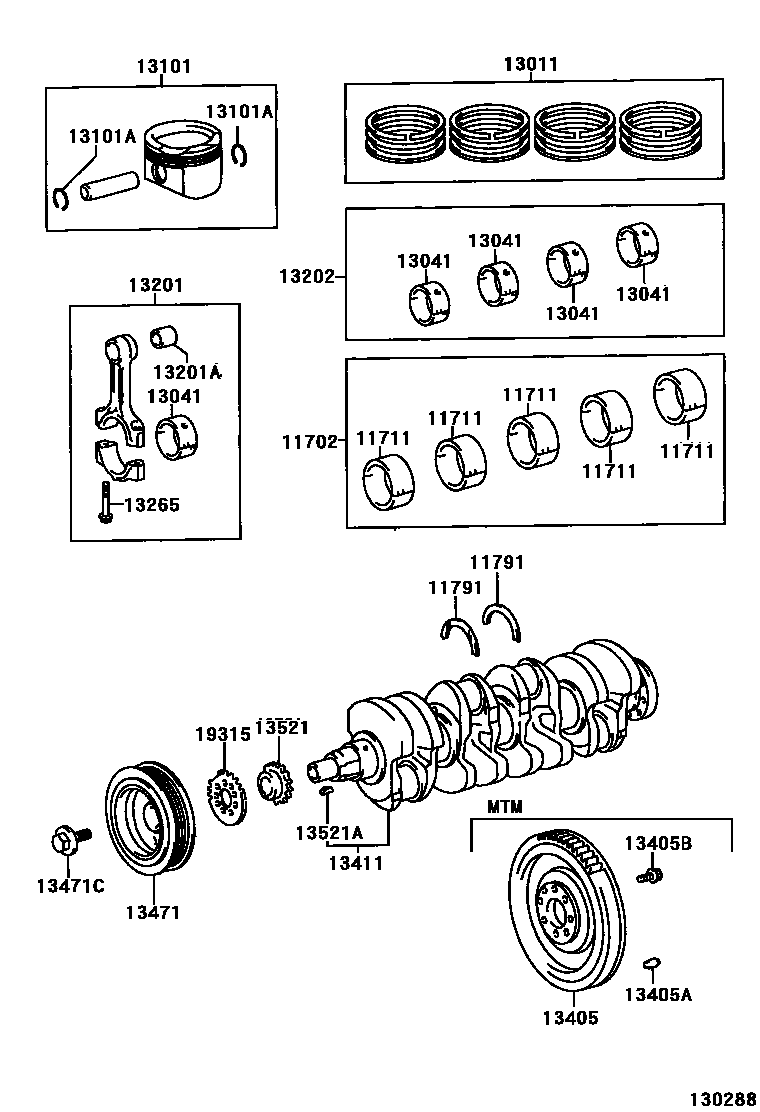

Toyota MR2 — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
REFER TO REPAIR MANUAL,MARK1
REFER TO REPAIR MANUAL,MARK2
REFER TO REPAIR MANUAL,MARK3
REFER TO REPAIR MANUAL,MARK4
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
REFER TO REPAIR MANUAL,MARK1
REFER TO REPAIR MANUAL,MARK2
REFER TO REPAIR MANUAL,MARK3
13101PISTON SUB-ASSY, W/PIN
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
13265BOLT, CONNECTING ROD
sub13265-22040
13405FLYWHEEL SUB-ASSY
sub13405-22020
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
20 parts on this diagram · 1 diagram in section
