Toyota MR2 — CONSOLE BOX & BRACKET

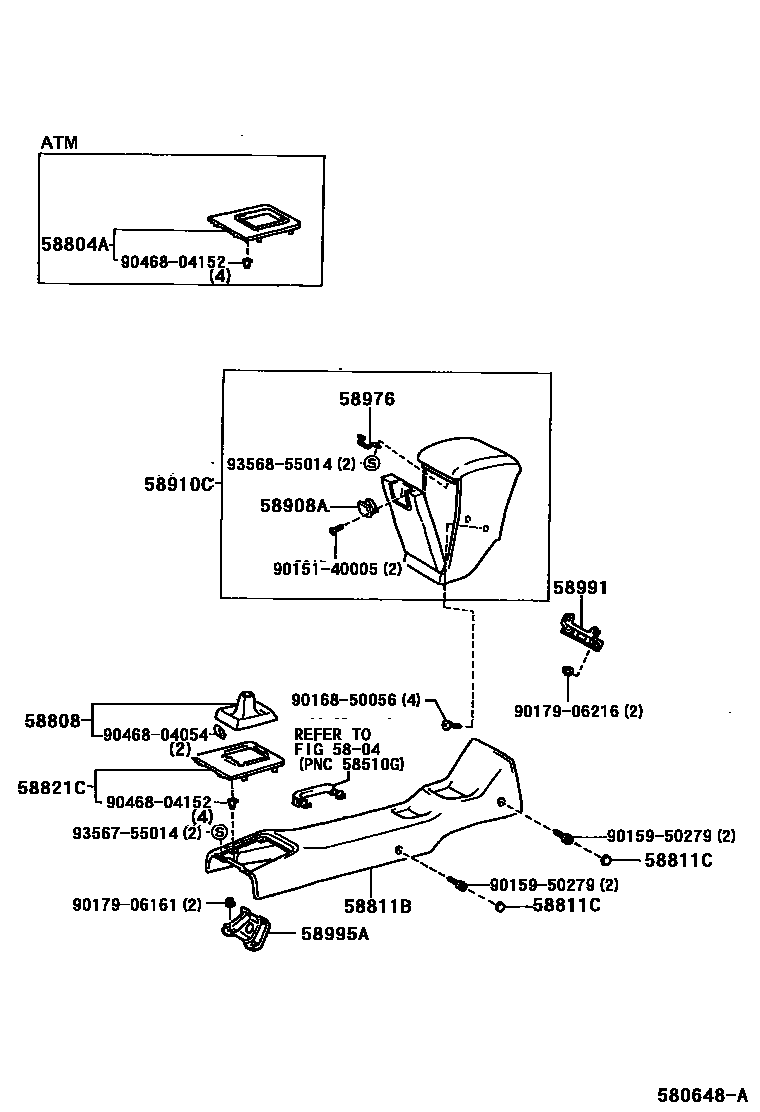

Parts diagram
5804
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-17050i199001-199506
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-17020-01i199001-199201
BLACK,TRIM2#,3#,8#
main58808-17030-C0i199201-199302
BLACK,TRIM0#,2#,8#
sub58808-17031
main58808-17030-C0i199201-199302
BLACK,TRIM2#,8#
sub58808-17031
main58808-17031-C0i199302-199311
BLACK,TRIM2#,8#
main58808-17031-C0i199302-199311
BLACK,TRIM0#,2#,8#
main58808-17031-C0i199311-199506
BLACK,TRIM0#,2#
58811BBOX, CONSOLE
main58801-17110-01i199001-199311
BLACK,TRIM2#
sub58801-17110
main58801-17110-02i199001-199201
RED,TRIM3#
sub58801-17110
main58801-17110-04i199001-199311
DARK BLUE,TRIM8#
sub58801-17110
main58801-17110-22i199311-199506
BLACK,TRIM2#
sub58801-17110
main58801-17120-01i199201-199311
LUXURY PACKAGE,BLACK,TRIM0#,2#
sub58801-17120
main58801-17120-01i199001-199311
BLACK,TRIM2#
sub58801-17120
main58801-17120-01i199001-199201
W(REAR CONSOLE BOX),BLACK,TRIM2#
sub58801-17120
main58801-17120-01i199201-199311
LUXURY PACKAGE,BLACK,TRIM2#
sub58801-17120
main58801-17120-01i199201-199311
BLACK,TRIM0#,2#
sub58801-17120
main58801-17120-02i199001-199201
W(REAR CONSOLE BOX),RED,TRIM3#
sub58801-17120
main58801-17120-02i199001-199201
RED,TRIM3#
sub58801-17120
main58801-17120-04i199201-199311
LUXURY PACKAGE,DARK BLUE,TRIM8#
sub58801-17120
main58801-17120-04i199001-199311
DARK BLUE,TRIM8#
sub58801-17120
main58801-17120-04i199001-199201
W(REAR CONSOLE BOX),DARK BLUE,TRIM8#
sub58801-17120
main58801-17120-22i199311-199506
BLACK,TRIM0#,2#
sub58801-17120
main58801-17120-22i199311-199506
LUXURY PACKAGE,BLACK,TRIM0#,2#
sub58801-17120
58811CCAP(FOR CONSOLE)
main90339-10001-01i199201-199311
BLACK,TRIM0#,2#
sub90339-10001
main90339-10001-01i199001-199311
BLACK,TRIM2#
sub90339-10001
main90339-10001-32i199001-199201
RED,TRIM3#
sub90339-10001
main90339-10001-C0i199311-199506
BLACK,TRIM0#,2#
sub90339-10001
main90339-10001-J1i199001-199311
DARK BLUE,TRIM8#
sub90339-10001
58821CPANEL, CONSOLE, UPPER
main58821-17030i199001-199506
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-17010-01i199201-199311
BLACK,TRIM0#,2#
sub58908-17010
main58908-17010-01i199001-199311
BLACK,TRIM2#
sub58908-17010
main58908-17010-02i199001-199201
RED,TRIM3#
sub58908-17010
main58908-17010-04i199001-199311
DARK BLUE,TRIM8#
sub58908-17010
main58908-17010-22i199311-199506
BLACK,TRIM0#,2#
sub58908-17010
58910CBOX ASSY, CONSOLE, REAR
main58910-17020-01i199201-199311
BLACK,TRIM0#,2#
sub58910-17020
main58910-17020-01i199001-199311
BLACK,TRIM2#
sub58910-17020
main58910-17020-02i199001-199201
RED,TRIM3#
sub58910-17020
main58910-17020-04i199001-199311
DARK BLUE,TRIM8#
sub58910-17020
main58910-17020-22i199311-199506
BLACK,TRIM0#,2#
sub58910-17020
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
main58976-17010i199001-199506
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
main58991-17020i199001-199506
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-17020i199001-199506
9015140005
main90151-40005
9015950279
main90159-50279
9016850056
main90168-50056
9017906161
main90179-06161
9017906216
main90179-06216
9046804054
main90468-04054
9046804152
main90468-04152
9356755014
main93567-55014
9356855014
main93568-55014

20 parts on this diagram · 1 diagram in section
