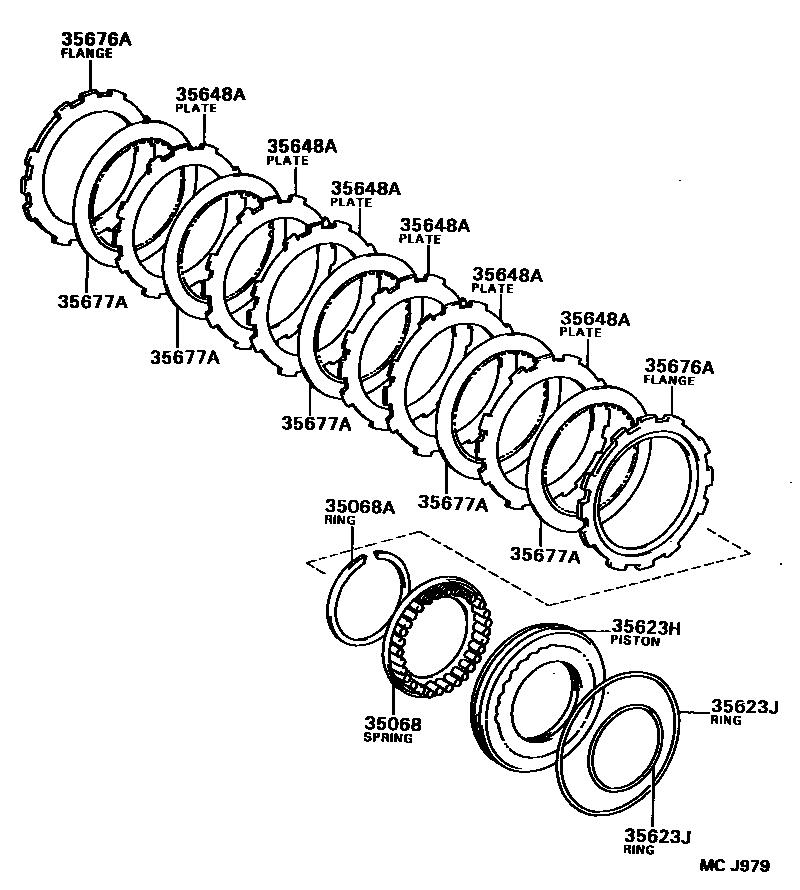

Toyota MR2 — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iSW21..4FC199001-199506

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iSW21..4FC199001-199506

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12050iSW21..4FC199308-199506

main35623-20010iSW21..4FC199001-199308

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iSW21..4FC199001-199506

INNER

main90301-99022iSW21..4FC199001-199506

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iSW21..4FC199001-199506

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iSW21..4FC199001-199506

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12060iSW21..4FC199311-199506

main35677-32040iSW21..4FC199001-199311

7 parts on this diagram · 1 diagram in section
