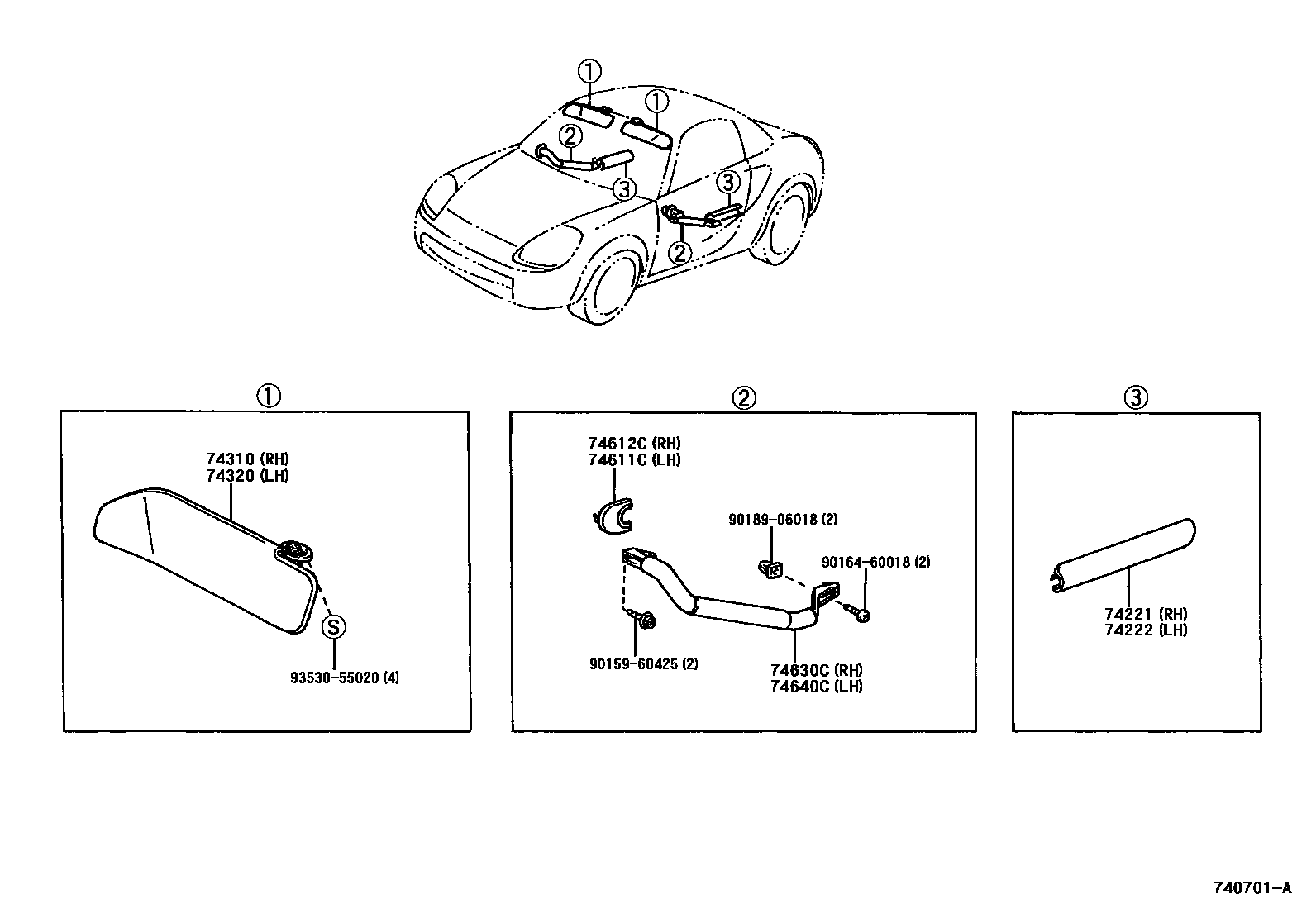

Toyota MR2 — ARMREST & VISOR

74221COVER, DOOR ARMREST, RH

main74221-17020-C0iZZW30199912-200008

BLACK,TRIM2#,3#,5#

74222COVER, DOOR ARMREST, LH

main74222-17020-C0iZZW30200008-200208

BLACK,TRIM2#,3#,4#,5#

74310VISOR ASSY, RH

main74310-17430-C0iZZW30..RHD199912-200008

BLACK,TRIM2#,3#,5#

main74310-17450-C0iZZW30..LHD200008-200208

BLACK,TRIM2#,3#,4#,5#

main74310-17460-C0iZZW30..ARL200208-200509

BLACK,TRIM1#,2#,3#

main74310-17480-C0iZZW30..RHD..6FS..EUR200208-200509

BLACK,TRIM1#,2#,3#

74320VISOR ASSY, LH

main74320-17380-C0iZZW30..RHD199912-200008

BLACK,TRIM2#,3#,5#

main74320-17410-C0iZZW30..LHD199912-200008

BLACK,TRIM2#,3#,5#

main74320-17430-C0iZZW30..LHD..6FS200208-200509

BLACK,TRIM1#,2#,3#

74611CCOVER, ASSIST GRIP, LH

main74611-17010-C0iZZW30199912-200008

BLACK,TRIM2#,3#,5#

74612CCOVER, ASSIST GRIP, RH

main74612-17020-C0iZZW30200008-200208

BLACK,TRIM2#,3#,4#,5#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-17010iZZW30199912-200208

main74630-17020iZZW30200208-200509

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-17010iZZW30199912-200208

main74640-17020iZZW30200208-200509

9015960425

main90159-60425

9016460018

main90164-60018

9018906018

main90189-06018

9353055020

main93530-55020

12 parts on this diagram · 1 diagram in section
