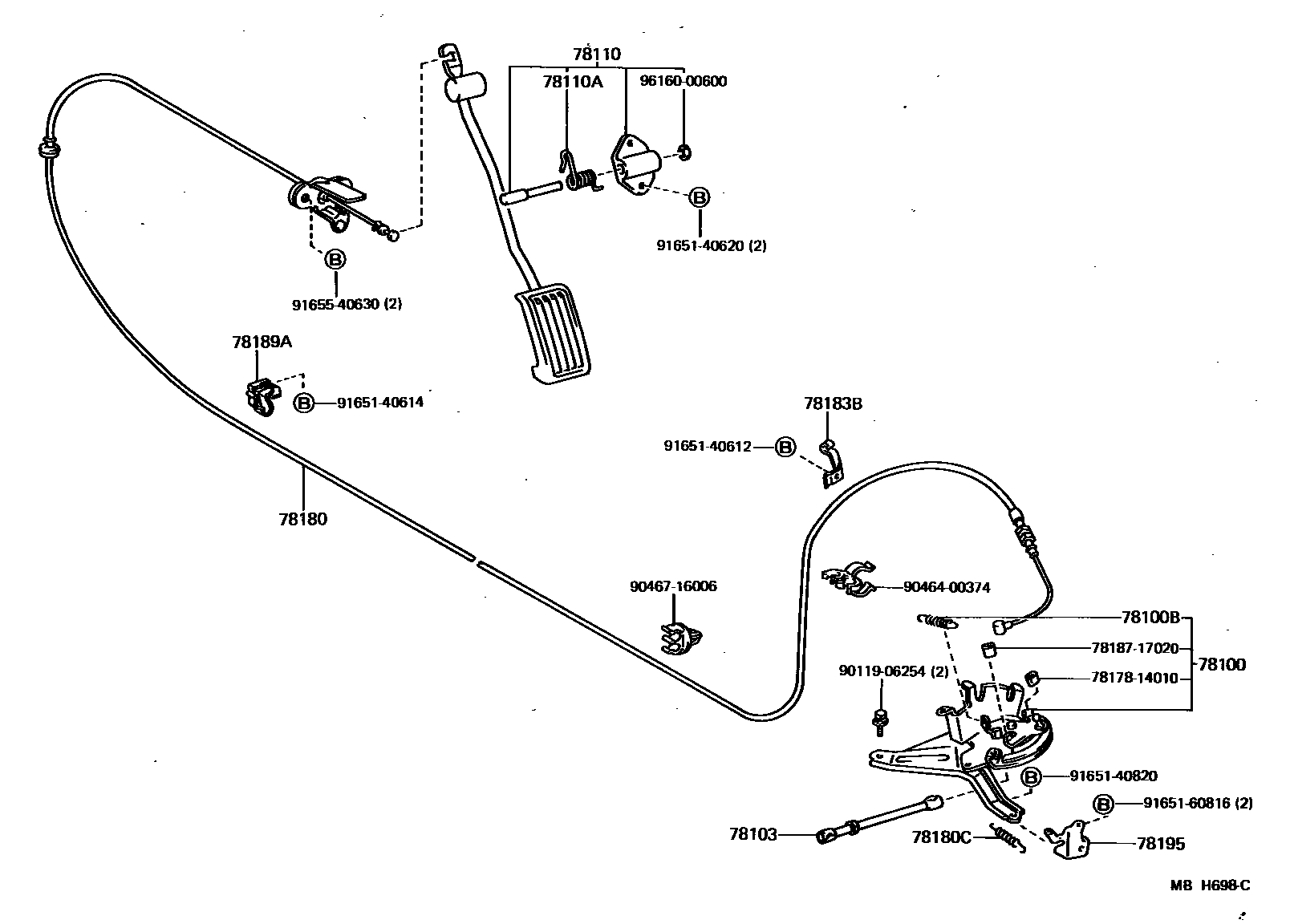

Toyota MR2 — ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-17010iAW11198411-198912

main78100-17020iAW11198411-198606

W/*CRC

main78100-17021iAW11198606-198803

W/*CRC

78100BSPRING (FOR ACCELERATOR LINK)

main90507-10014iAW11198411-198803

W/*CRC

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-17010iAW11198411-198912

78110ROD ASSY, ACCELERATOR PEDAL

main78120-17010iAW11..RHD198411-198912

main78120-17020iAW11..LHD198411-198912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18041iAW11..RHD198411-198912

main90508-18058iAW11..LHD198411-198912

78180WIRE ASSY, ACCELERATOR

main78180-17020iAW11..RHD198411-198912

main78180-17030iAW11..LHD198411-198912

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-10016iAW11198411-198912

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-17010iAW11198411-198912

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-17010iAW11198411-198912

78195BRACKET, ACCELERATOR LINK

main78195-17010iAW11198411-198912

7817814010HANGER, SPRING

main78178-14010

7818717020BRACKET, ACCELERATOR PULL BACK SPRING

main78187-17020

9011906254

main90119-06254

9046400374

main90464-00374

9046716006

main90467-16006

9165140612

main91651-40612

9165140614

main91651-40614

9165140620

main91651-40620

9165140820

main91651-40820

9165160816

main91651-60816

9165540630

main91655-40630

9616000600

main96160-00600

22 parts on this diagram · 2 diagrams in section
