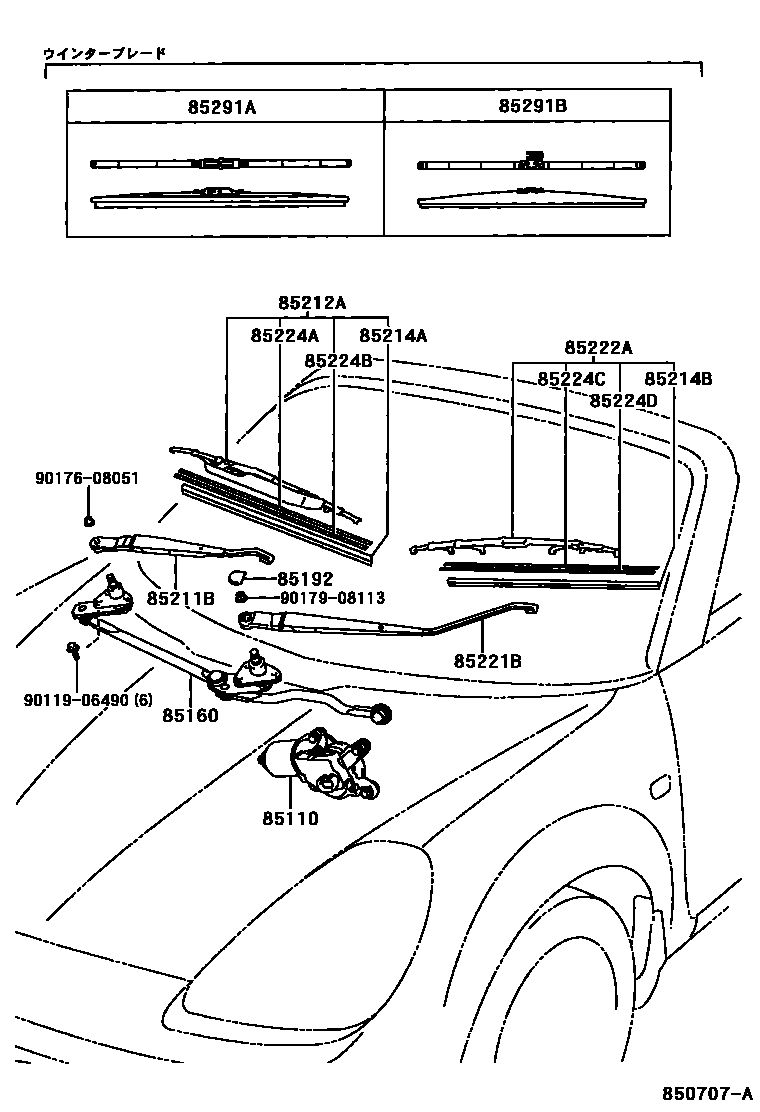

Toyota MR-S — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-17010i199910-200208

main85110-17020i199910-200208

85160LINK ASSY, WINDSHIELD WIPER

main85150-17060i199910-200208

85192COVER, WINDSHIELD WIPER ARM

main85292-12020i199910-200208

85211BARM, FRONT WIPER, RH

main85211-17070i199910-200208

85212ABLADE, FR WIPER, RH

main85212-17100i199910-200208

main85212-17101i200606-200707

85214ARUBBER, WIPER, RH

main85214-10080i199910-200208

main85214-24050i200406-200605

main85214-24051i200606

main85214-53050i200208-200405

85214BRUBBER, WIPER, LH

main85214-35040i199910-200208

main85214-48020i200208-200406

main85214-53040i200406-200605

main85214-53041i200606

85221BARM, FRONT WIPER, LH

main85221-17060i199910-200208

85222ABLADE, FR WIPER, LH

main85222-3H060i199910-200208

main85222-48111i200208-200405

main85222-53010i200406-200605

main85222-53011i200606-200707

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10180i199910-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-10180i199910-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35040i199910-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35040i199910-200208

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050i199910-200208

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030i199910-200208

9011906490

main90119-06490

9017608051

main90176-08051

9017908113

main90179-08113

18 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota MR-S

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota MR-S. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
