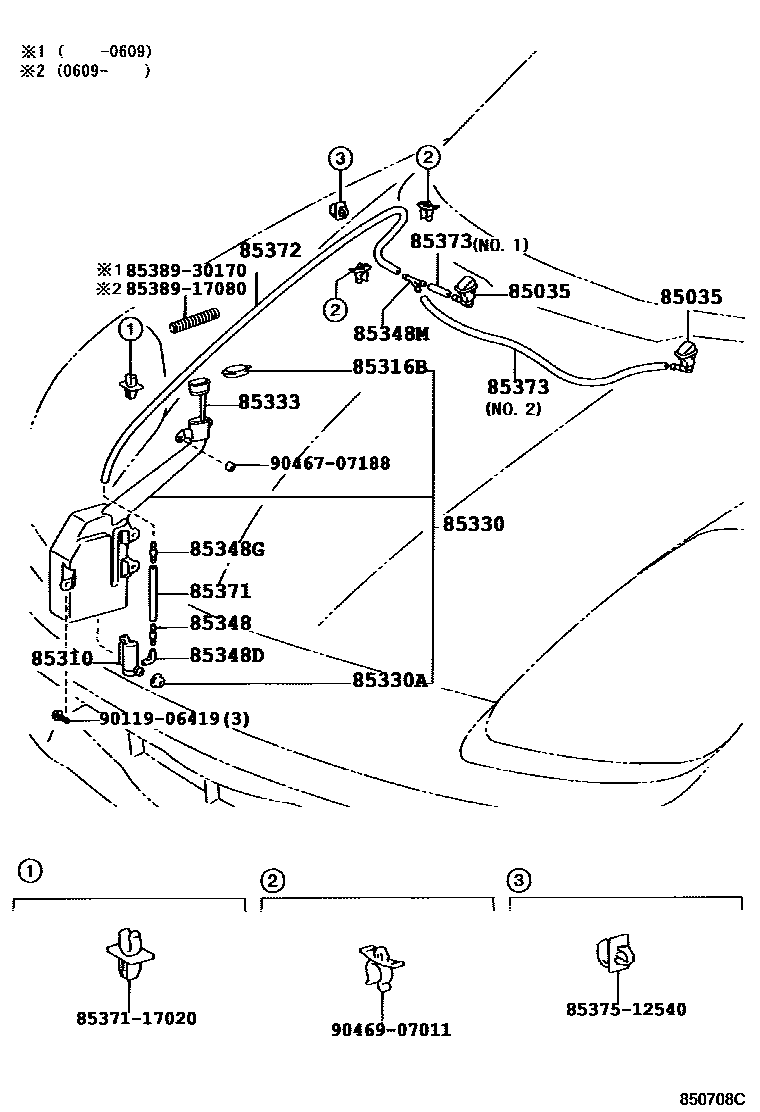

Toyota MR-S — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iZZW30200208

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iZZW30199910-200208

85316BCAP, WASHER, INLET

main85316-26030iZZW30200208

main85316-42011iZZW30199910-200208

85330JAR ASSY, WINDSHIELD WASHER

main85315-17080iZZW30199910-200208

main85315-17100iZZW30200208

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iZZW30199910-200208

85333FILTER, WINDSHIELD WASHER JAR

main85312-17010iZZW30199910-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iZZW30199910-200208

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iZZW30199910-200208

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iZZW30199910-200208

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iZZW30200208

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iZZW30199910-200208

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33968iZZW30199910-200208

sub90099-33803

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZZW30199910-200001

8537117020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-17020

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

8538917080PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-17080

8538930170PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-30170

9011906419

main90119-06419

9046707188

main90467-07188

9046907011

main90469-07011

20 parts on this diagram · 1 diagram in section
