Toyota MR-S — V-BELT

1107MOUNTING

→ Go to FIG 11-07

1601WATER PUMP

→ Go to FIG 16-01

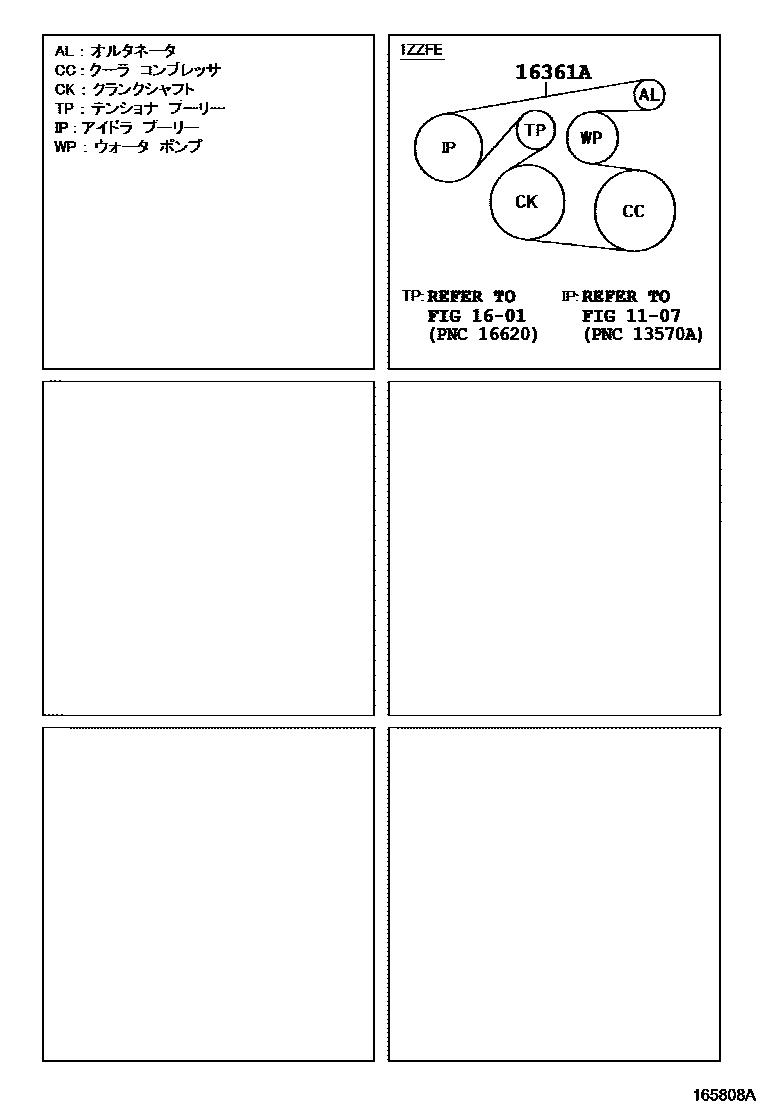

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02487i199910-199912

main90916-02539i199912-200208

main90916-02549i199910-200208

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota MR-S

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota MR-S. Key components include: MOUNTING, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
