Toyota MR-S — MOUNTING
12301BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
13570AIDLER ASSY, V-RIBBED, NO.1
9010510206
main90105-10206
9010510215
main90105-10215
9010510348
main90105-10348
9010510404
main90105-10404
9010510409
main90105-10409
9010510422
main90105-10422
9010510431
main90105-10431
9010510494
main90105-10494
9010512155
main90105-12155
9011610184
main90116-10184
9011910818
main90119-10818
9011912149
main90119-12149
9017910108
main90179-10108
9017910154
main90179-10154
9017910173
main90179-10173
9017910180
main90179-10180
9017912149
main90179-12149
9044018010
main90440-18010
9413060800
main94130-60800

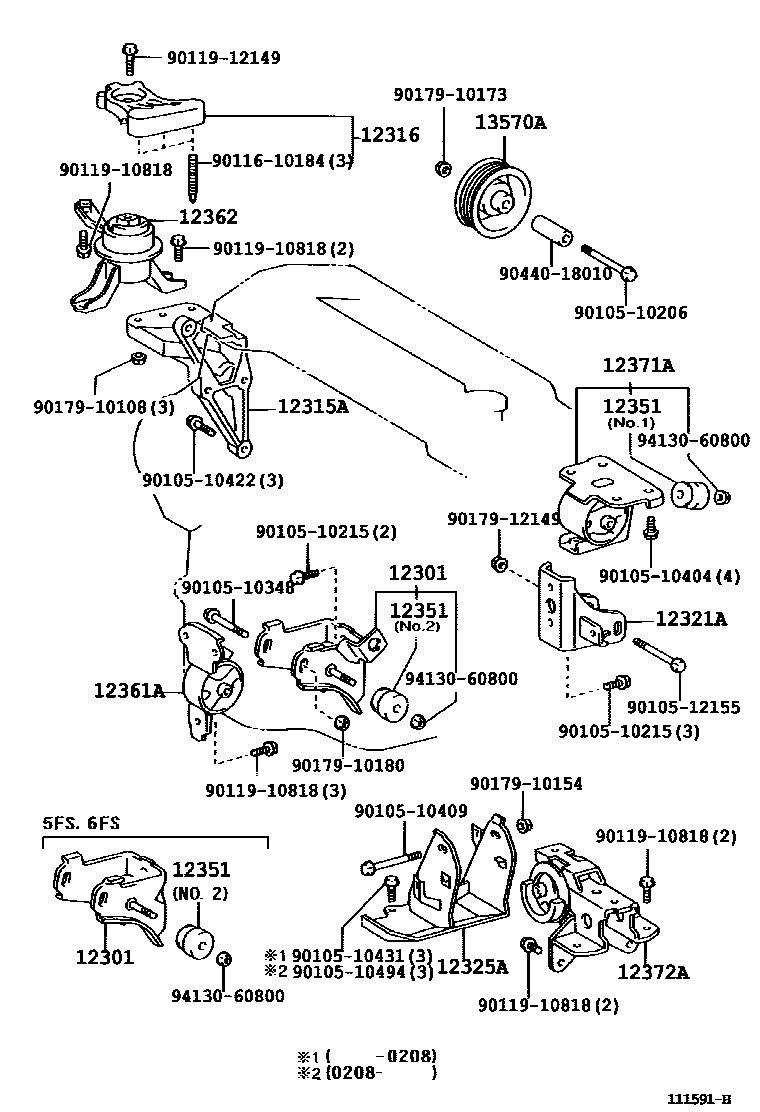

30 parts on this diagram · 1 diagram in section
MOUNTING for Toyota MR-S
This section contains 30 genuine Toyota parts for the MOUNTING system of the Toyota MR-S. Key components include: BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
