Toyota MR-S — MIRROR

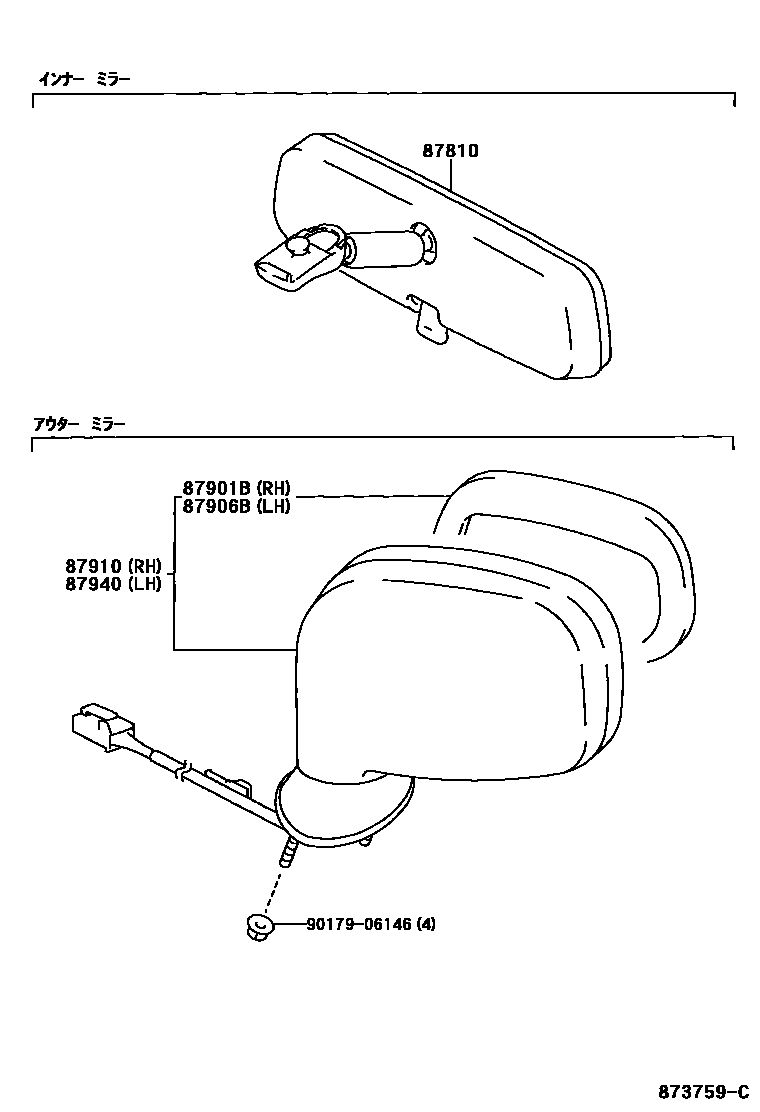

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i199910-200208

main87810-52040i200208-200612

main87810-52041i200701

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-10690i199910-200208

main87931-17320i200208-200402

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-10700i199910-200208

main87961-17330i199910-200208

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-17300-A0i200208-200707

main87910-17300-B0i199910-200208

main87910-17300-B1i200208-200707

main87910-17300-B2i200208-200707

main87910-17300-C0i199910-200208

main87910-17300-D0i199910-200208

main87910-17300-F0i200208-200707

main87910-17300-G0i199910-200108

main87910-17300-G1i200208-200707

main87910-17300-J0i199910-200208

main87910-17300-J1i200208-200707

main87910-17320i199910-200208

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-17320-A0i199910-200208

main87940-17320-B0i199910-200208

main87940-17320-B1i200208-200707

main87940-17320-B2i200208-200707

main87940-17320-C0i199910-200208

main87940-17320-D0i199910-200208

main87940-17320-F0i200208-200707

main87940-17320-G0i199910-200108

main87940-17320-G1i200008-200208

main87940-17320-J0i200208-200707

main87940-17320-J1i200208-200707

main87940-17330i200208-200402

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota MR-S

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota MR-S. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
