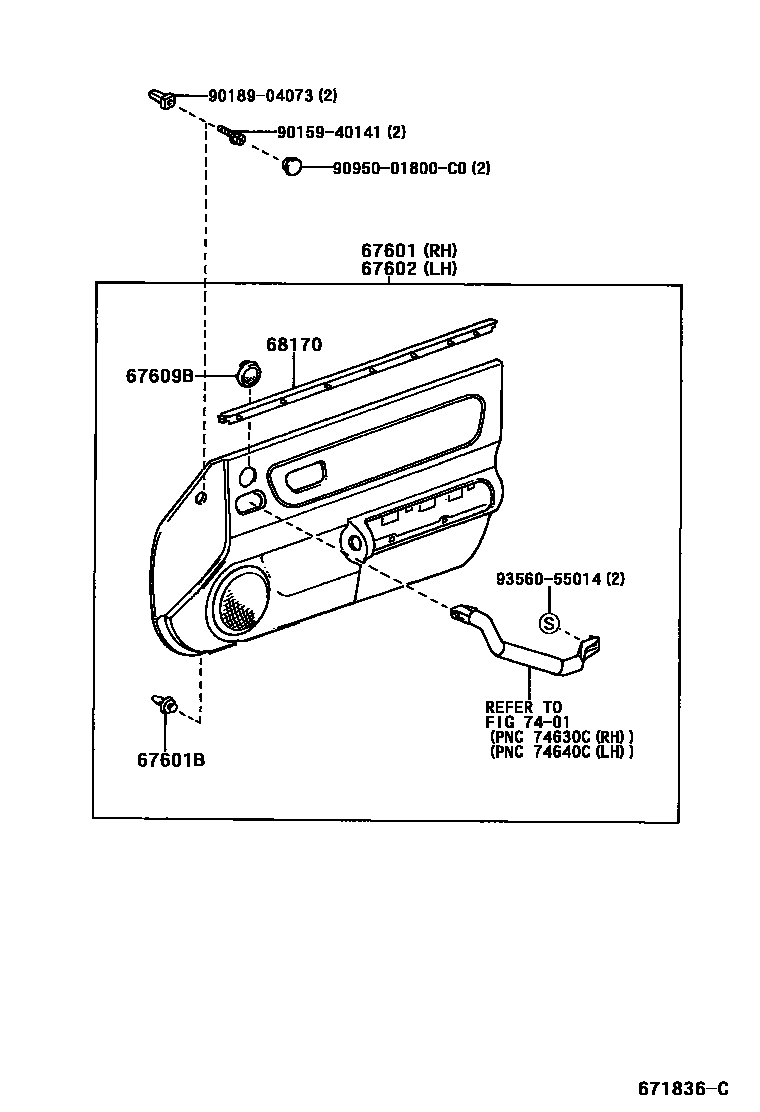

Toyota MR-S — FRONT DOOR PANEL & GLASS
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
MD.GRAY,TRIM1#
BLACK,TRIM2#
RED,TRIM3#
TAN,TRIM4#
TAN,TRIM4#
TAN,TRIM4#
V EDITION FINAL VERSION *(F),BLACK,TRIM20
V EDITION FINAL VERSION *(F),RED,TRIM30
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
MD.GRAY,TRIM1#
BLACK,TRIM2#
RED,TRIM3#
TAN,TRIM4#
TAN,TRIM4#
TAN,TRIM4#
V EDITION FINAL VERSION *(F),BLACK,TRIM20
V EDITION FINAL VERSION *(F),RED,TRIM30
67609BGRILLE SUB-ASSY, FRONT DOOR SPEAKER
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
7401ARMREST & VISOR
9015940141
main90159-40141
9018904073
main90189-04073
9095001800C0
main90950-01800C0
9356055014
main93560-55014
10 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota MR-S
This section contains 47 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota MR-S. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, EXTENSION,FRONT DOOR INSIDE PANEL REINFORCEMENT, FRONT, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
