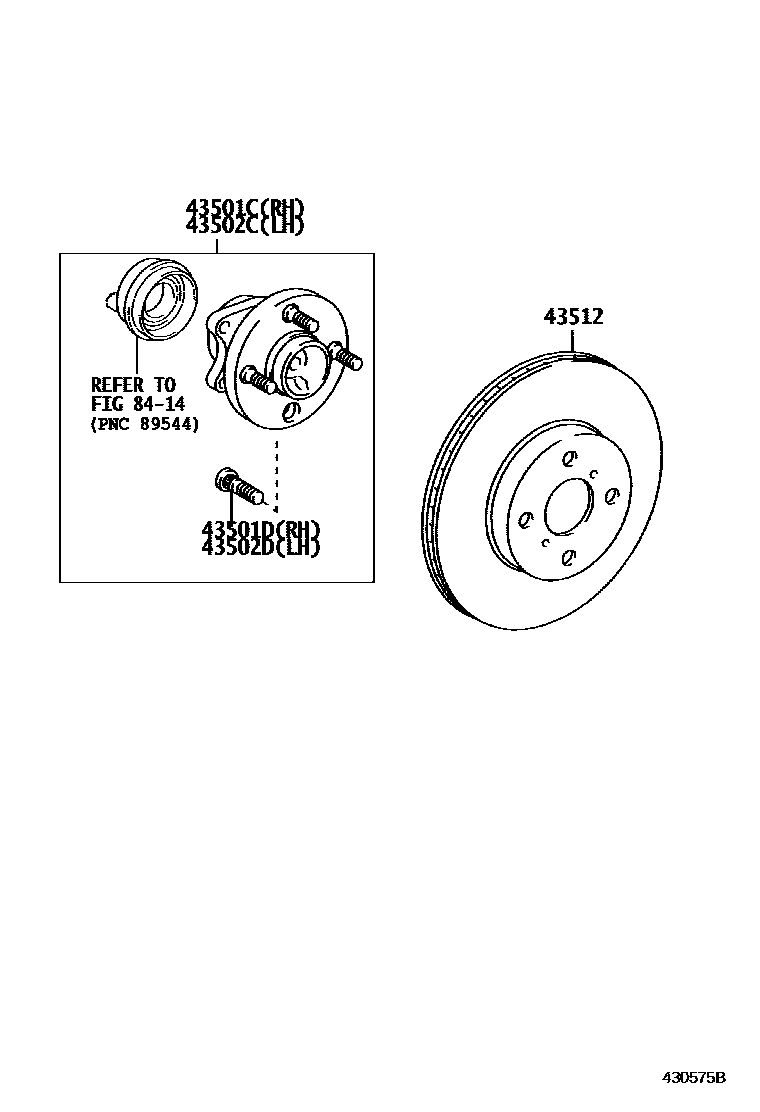

Toyota MR-S — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-17010i199910-200208

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i199910-200208

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-17010i199910-200208

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i199910-200208

43512DISC, FRONT

main43512-17120×2i199910-200102

main43512-17130×2i199910-200102

main43512-17131×2i200309-200707

8414ABS & VSC

→ Go to FIG 84-14

6 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota MR-S

This section contains 6 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota MR-S. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), DISC, FRONT.
