Toyota MR-S — FOG LAMP

81127CBEARING FOG LAMP

main90075-10811×2i200208

81210ALAMP ASSY, FOG, RH

main81210-52060i200208

81210BBULB, FOG LAMP

main90981-13047×2i200208

81211CLAMP UNIT, FOG LAMP, RH

main81211-52060i200208

81220LAMP ASSY, FOG, LH

main81220-52060i200208

81221CLAMP UNIT, FOG LAMP, LH

main81221-52060i200208

6 parts on this diagram · 1 diagram in section

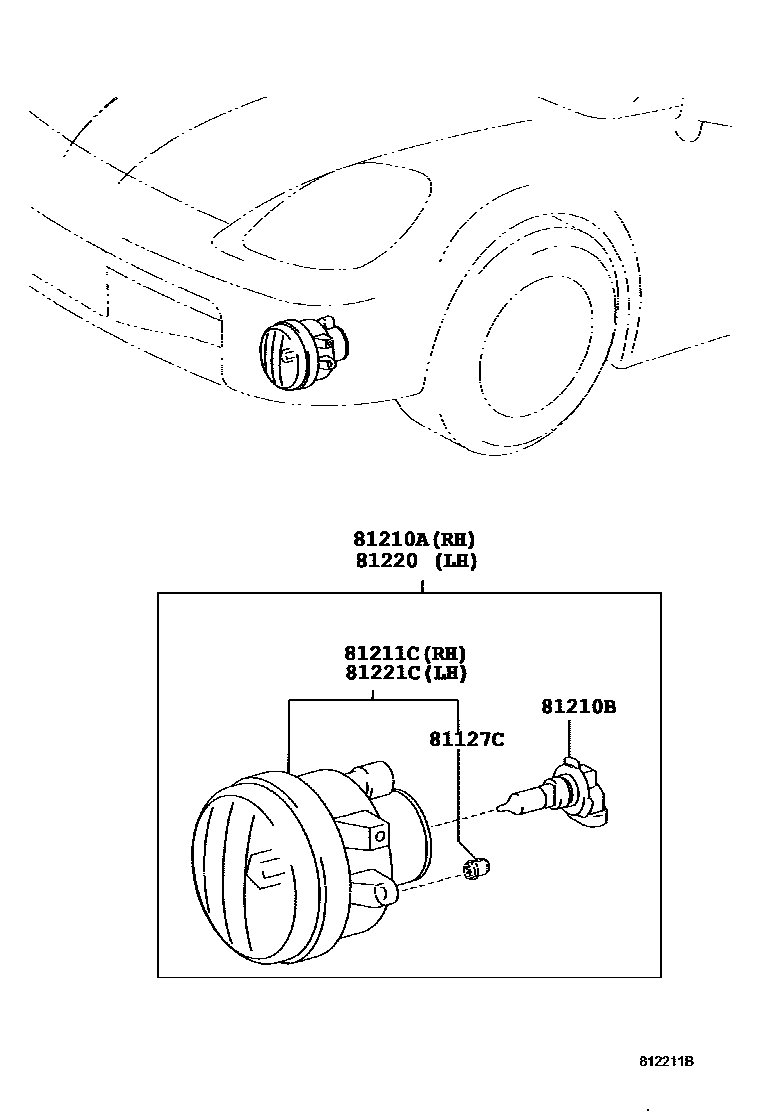

FOG LAMP for Toyota MR-S

This section contains 6 genuine Toyota parts for the FOG LAMP system of the Toyota MR-S. Key components include: BEARING FOG LAMP, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
