Toyota MR-S — COWL PANEL & WINDSHIELD GLASS

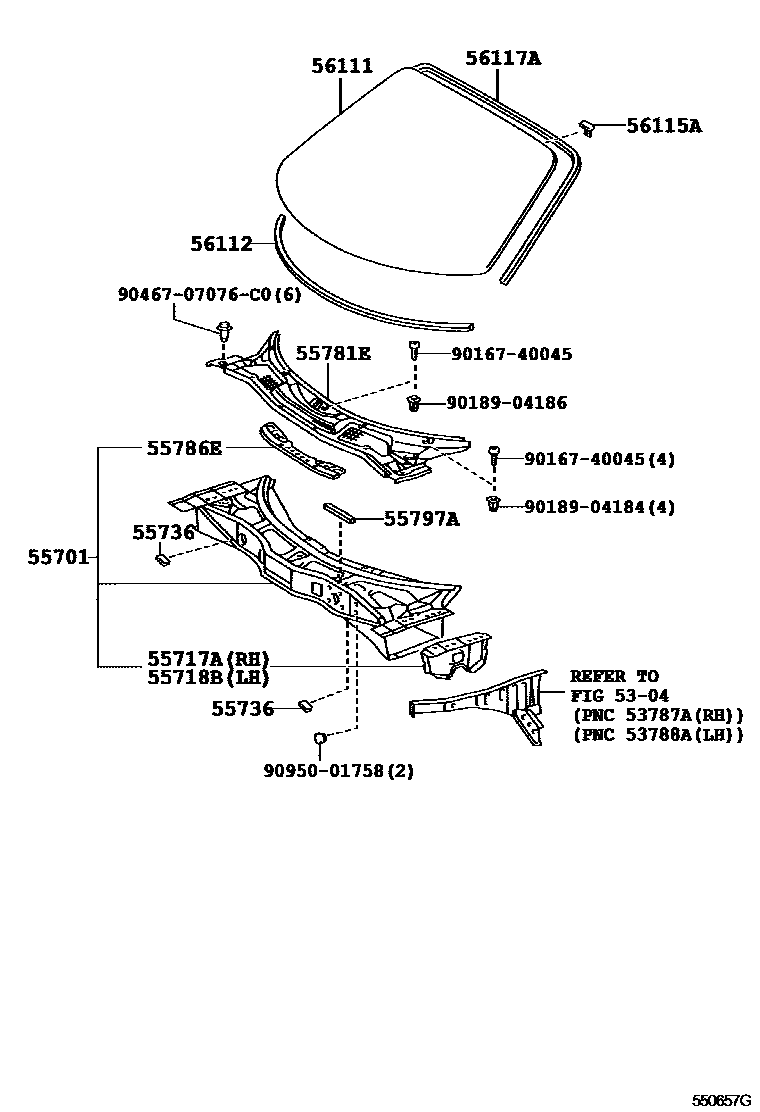

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55701PANEL SUB-ASSY, COWL

main55700-17130i199910-200208

main55700-17131i200208-200707

55717APANEL, COWL TOP SIDE, INNER RH

main55717-17030i200208

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-17030i199910-200208

55736SEAL, WATER GUARD PLATE

main55736-17020i200208

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-17050i200208-200405

main55708-17051i200405-200510

main55708-17052i200511

main55708-17070i200208-200405

main55708-17071i200405-200510

main55708-17072i200511

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-17030i199910-200208

55797ASEAL, COWL WATER EXTRACT

main55797-17020i199910-200208

56111GLASS, WINDSHIELD

main56101-17010i199910-200208

main56101-17030i200208

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main04562-12010i199910-200208

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-33020×2i199910-200208

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010i199910-200208

9016740045

main90167-40045

9018904184

main90189-04184

9018904186

main90189-04186

9046707076C0

main90467-07076C0

9095001758

main90950-01758

17 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota MR-S

This section contains 17 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota MR-S. Key components include: FRONT FENDER APRON & DASH PANEL, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, INNER RH, PANEL, COWL TOP SIDE, INNER LH, SEAL, WATER GUARD PLATE.
