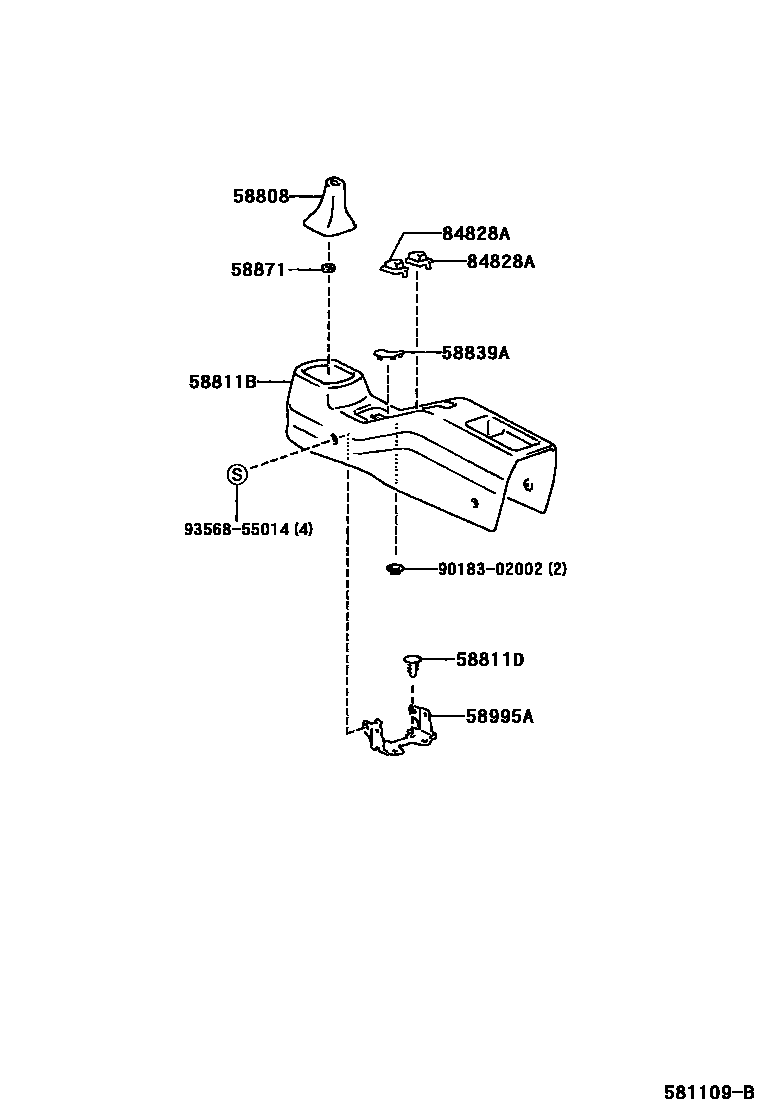

Toyota MR-S — CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-17040-C0iZZW30199910-200008

BLACK,TRIM2#,3#,5#

58811BBOX, CONSOLE

main58801-17140-C0iZZW30199910-200008

BLACK,TRIM2#,3#,5#

58811DCLIP(FOR CONSOLE BOX)

main90467-10130iZZW30..5F199910-200208

58839ACOVER, CONSOLE BOX HOLE

main58839-17010-C0iZZW30199910-200008

BLACK,TRIM2#,3#,5#

58871CUSHION, CONSOLE BOX

main58871-20060iZZW30..5F199910-200208

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-17030iZZW30..5F199910-200208

84828ACOVER, POWER WINDOW SWITCH

main84828-17010-C0×2iZZW30199910-200208

BLACK,TRIM2#,3#,5#

9018302002

main90183-02002

9356855014

main93568-55014

9 parts on this diagram · 2 diagrams in section
