Toyota MR-S — ARMREST & VISOR

74221COVER, DOOR ARMREST, RH

main74221-17020-C0i200008-200208

BLACK,TRIM2#,3#,4#,5#

74222COVER, DOOR ARMREST, LH

main74222-17020-C0i199910-200008

BLACK,TRIM2#,3#,5#

74310VISOR ASSY, RH

main74310-17420-C0i200008-200208

BLACK,TRIM2#,3#,4#,5#

main74310-17470-C0i200208-200707

BLACK,TRIM1#,2#,3#,4#

74320VISOR ASSY, LH

main74320-17370-C0i200008-200208

BLACK,TRIM2#,3#,4#,5#

main74320-17390-C0i200008-200208

74611CCOVER, ASSIST GRIP, LH

main74611-17010-C0i199910-200008

BLACK,TRIM2#,3#,5#

74612CCOVER, ASSIST GRIP, RH

main74612-17020-C0i199910-200008

BLACK,TRIM2#,3#,5#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-17010i199910-200208

main74630-17020i200208

main74630-17030i200701

V EDITION FINAL VERSION *(F)

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-17010i199910-200208

main74640-17020i200208

main74640-17030i200701

V EDITION FINAL VERSION *(F)

9015960425

main90159-60425

9016460018

main90164-60018

9018906018

main90189-06018

9353055020

main93530-55020

12 parts on this diagram · 1 diagram in section

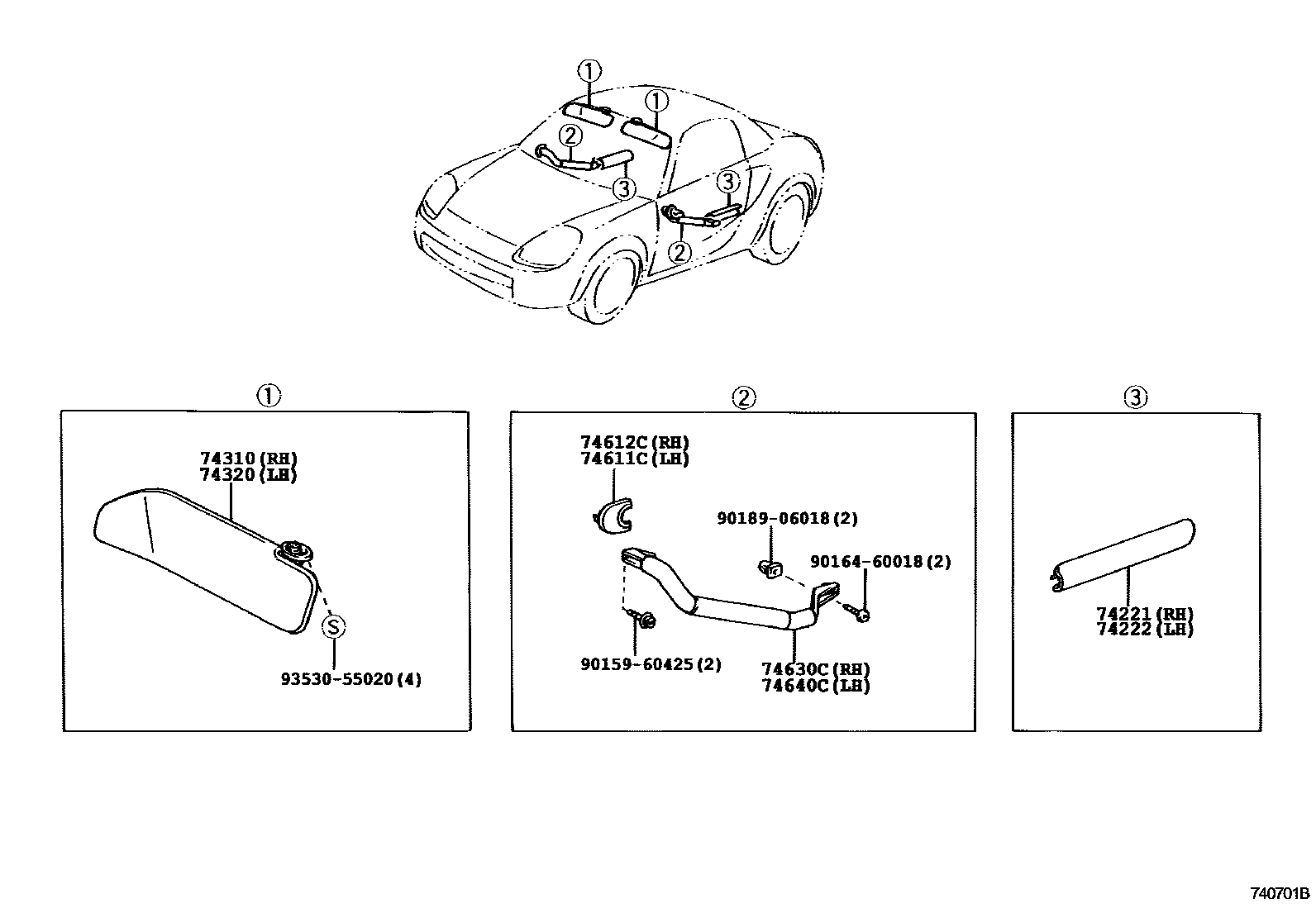

ARMREST & VISOR for Toyota MR-S

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota MR-S. Key components include: COVER, DOOR ARMREST, RH, COVER, DOOR ARMREST, LH, VISOR ASSY, RH, VISOR ASSY, LH, COVER, ASSIST GRIP, LH.
