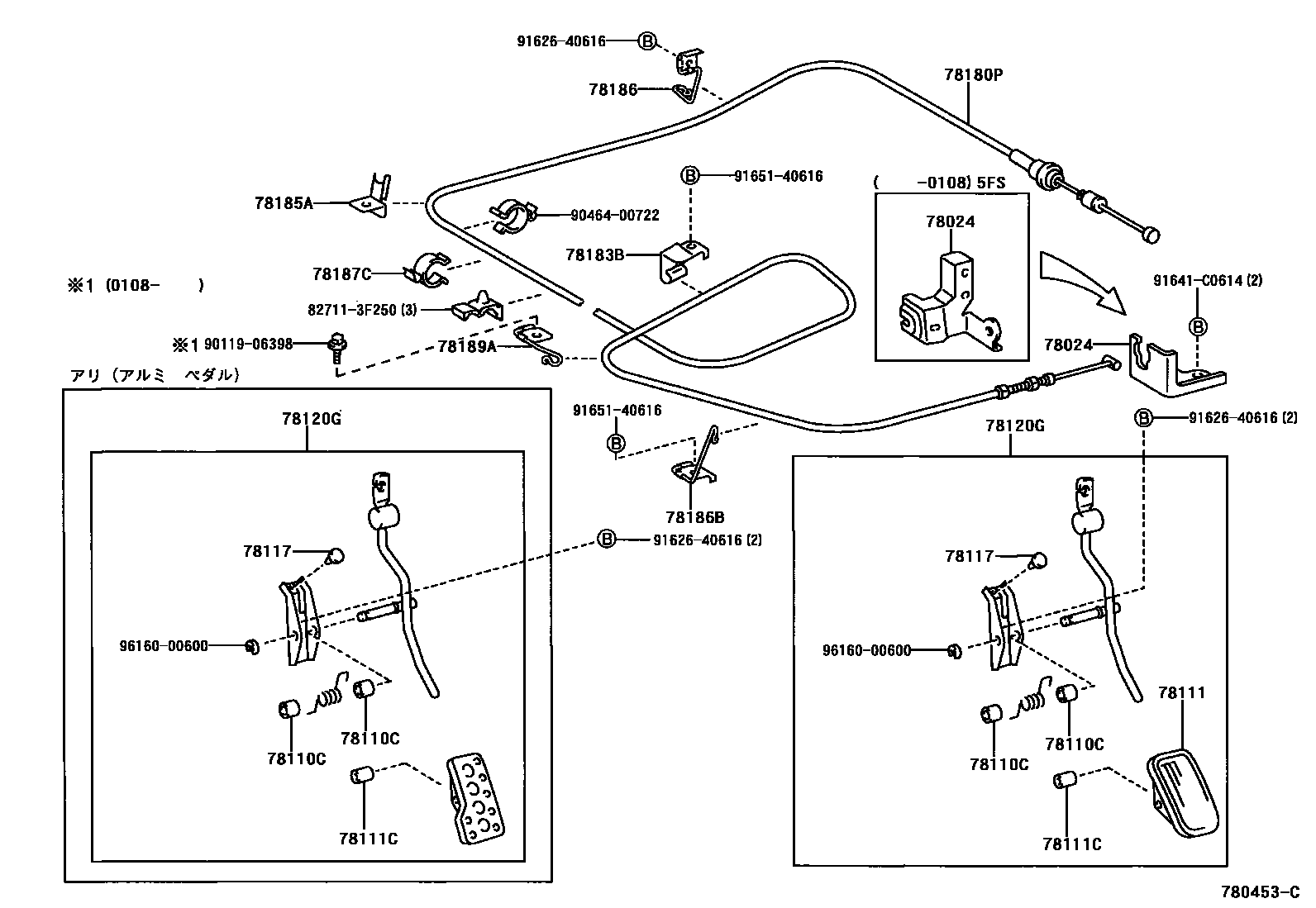

Toyota MR-S — ACCELERATOR LINK

0001 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-17020iZZW30..5F199910-200208

main78024-17030iZZW30..5FS200107-200208

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08007×2iZZW30199910-200208

78111PEDAL, ACCELERATOR

main78111-20060iZZW30199910-200208

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iZZW30199910-200208

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06008iZZW30199910-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78120-17070iZZW30199910-200208

main78120-17080iZZW30199910-200208

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-17360iZZW30..6F200208

main78180-17380iZZW30..5FS200008-200108

main78180-17400iZZW30..5FS200108-200208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-17060iZZW30199910-200208

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-17040iZZW30199910-200002

main78185-17041iZZW30200002-200208

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-17020iZZW30199910-200208

78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2

main78186-17030iZZW30199910-200108

78187CCLAMP, ACCELERATOR CONTROL CABLE, NO.4

main78187-17030iZZW30200208

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-17020iZZW30..5F200108-200208

main78189-17030iZZW30..6FS200208

827113F250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F250

9011906398

main90119-06398

9046400722

main90464-00722

9162640616

main91626-40616

91641C0614

main91641-C0614

9165140616

main91651-40616

9616000600

main96160-00600

20 parts on this diagram · 2 diagrams in section
