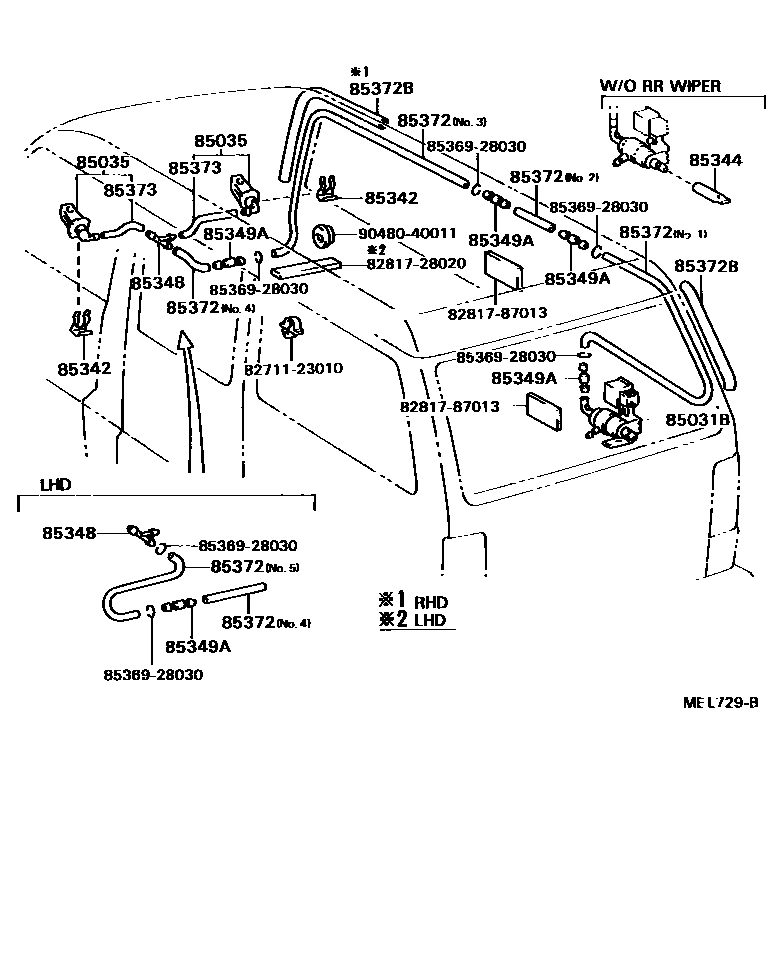

Toyota MODEL-F — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-87002i198808-198908

main85321-87001i198908-199001

85035NOZZLE SUB-ASSY, WASHER

main85035-28040i198808-199001

main85035-28050i198808-199001

main85035-87007i198808-199001

main85035-87008i198808-199001

85342HOLDER, WASHER NOZZLE

main85342-95J00×2i198808-199001

85344TUBE, WINDSHIELD WASHER HOSE, STOP

main85344-30010i198808-199001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-22162i198808-199001

main85348-40010i198808-199001

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i198808-199001

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-20010×2i198808-199001

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85354-28021i198808-199001

L=2330,NO.3

main85354-87001i198808-199001

L=2250,NO.1

main85354-87002i198808-199001

*H,L=3110,NO.3

main90099-33075×2i198808-199001

L=1000(*H,L=40),NO.2 & NO.4

main90446-08007i198808-199001

L=1450(*H,L=870),NO.5

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85343-87004i198808-199001

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i198808-199001

L=1000(*H,L=360),LH,RH; L=1450(*H,L=150),LH,RH

8271123010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-23010

8281728020PROTECTOR, WIRING HARNESS, NO.1

main82817-28020

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

8536928030CLAMP

main85369-28030

9048040011

main90480-40011

15 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota MODEL-F

This section contains 31 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MODEL-F. Key components include: VALVE SUB-ASSY, WASHER, CAP ASSY, WINDSHIELD WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
