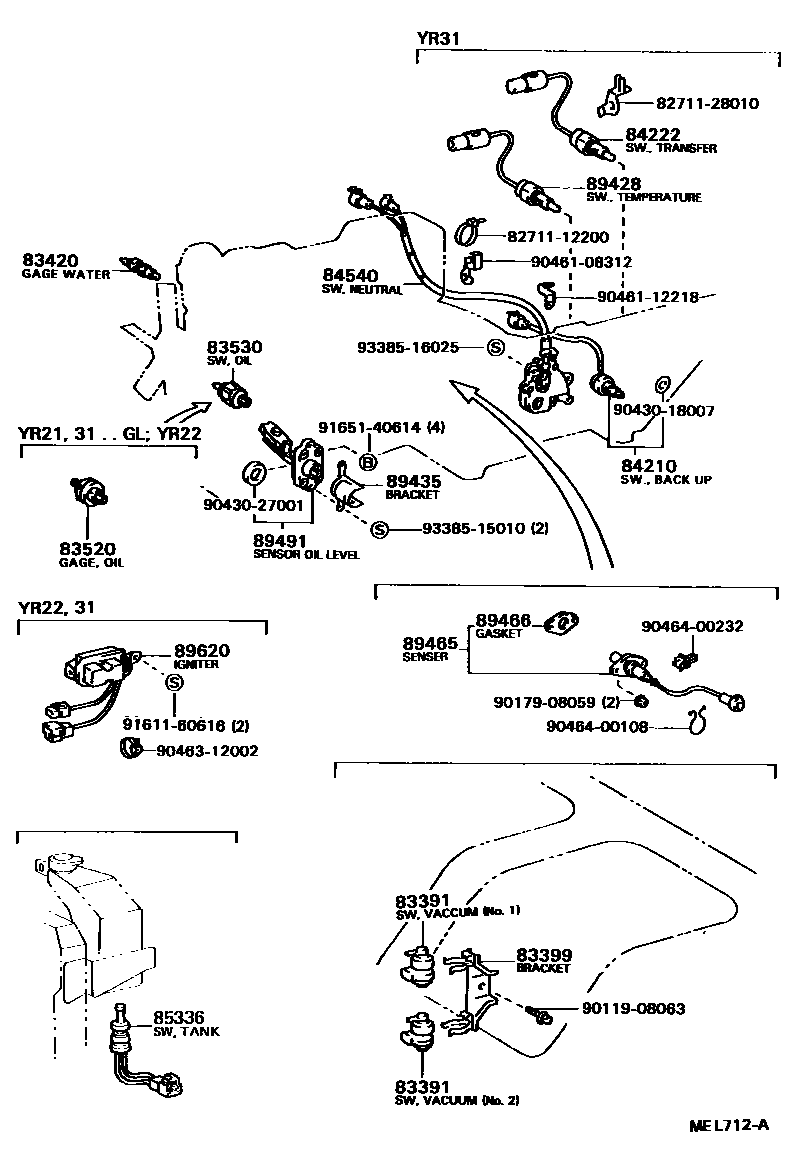

Toyota MODEL-F — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

83391SWITCH, VACUUM

main83391-12210iYR21..ARL198808-199001

NO.1

main83391-27060iYR21..ARL198808-199001

NO.2

83399BRACKET, VACUUM SWITCH

main83399-28060iYR21..ARL198808-199001

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iYR2#,31198808-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iYR22;YR21,31..GL198808-199001

sub83520-35030

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYR21..DLX198808-199001

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iYR2#,31..5F198808-199001

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iYR31198808-199001

84540SWITCH ASSY, NEUTRAL START

main84540-35010iYR2#,31..4FC198808-199001

85336SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85335-73010iYR2#,31198808-199001

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-28040iYR31..4FC198808-199001

89435BRACKET, CONNECTOR COVER

main89435-28030iYR2#,31..ARL198808-199001

89465SENSOR, OXYGEN

main89465-19066iYR21..ARL198808-198905

main89465-19067iYR21..ARL198905-199001

main89465-19265iYR22,31198808-199001

89466GASKET, OXYGEN SENSOR

main89466-20020iYR2#,31..ARL198810-199001

main89466-30010iYR2#,31..ARL198808-198810

89491SENSOR, ENGINE OIL LEVEL

main89491-27020iYR2#,31..ARL198808-199001

89620IGNITER ASSY

main89620-28040iYR22,31198808-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271128010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28010

9011908063

main90119-08063

9017908059

main90179-08059

9043018007

main90430-18007

9043027001

main90430-27001

9046108312

main90461-08312

9046112218

main90461-12218

9046312002

main90463-12002

9046400108

main90464-00108

9046400232

main90464-00232

9161160616

main91611-60616

9165140614

main91651-40614

9338515010

main93385-15010

9338516025

main93385-16025

30 parts on this diagram · 5 diagrams in section
