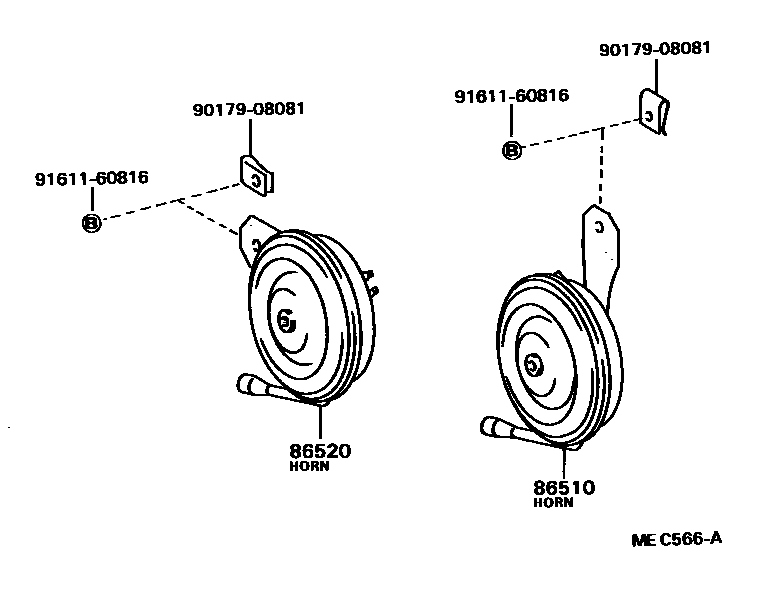

Toyota MODEL-F — HORN

86510HORN ASSY, HIGH PITCHED

main86510-87005i198211-198808

DENSO

main86510-87006i198211-198808

MARUKO

main86510-87007i198211-198508

main86510-87010i198508-198808

86520HORN ASSY, LOW PITCHED

main86520-28020i198412-198508

CHINA SPEC

main86520-87015i198211-198808

DENSO

main86520-87016i198211-198808

MARUKO

main86520-87017i198211-198508

main86520-87018i198211-198808

W/MW/SW RADIO

main86520-87019i198508-198808

9017908081

main90179-08081

9161160816

main91611-60816

4 parts on this diagram · 1 diagram in section

HORN for Toyota MODEL-F

This section contains 4 genuine Toyota parts for the HORN system of the Toyota MODEL-F. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
