Toyota MODEL-F — CONSOLE BOX & BRACKET

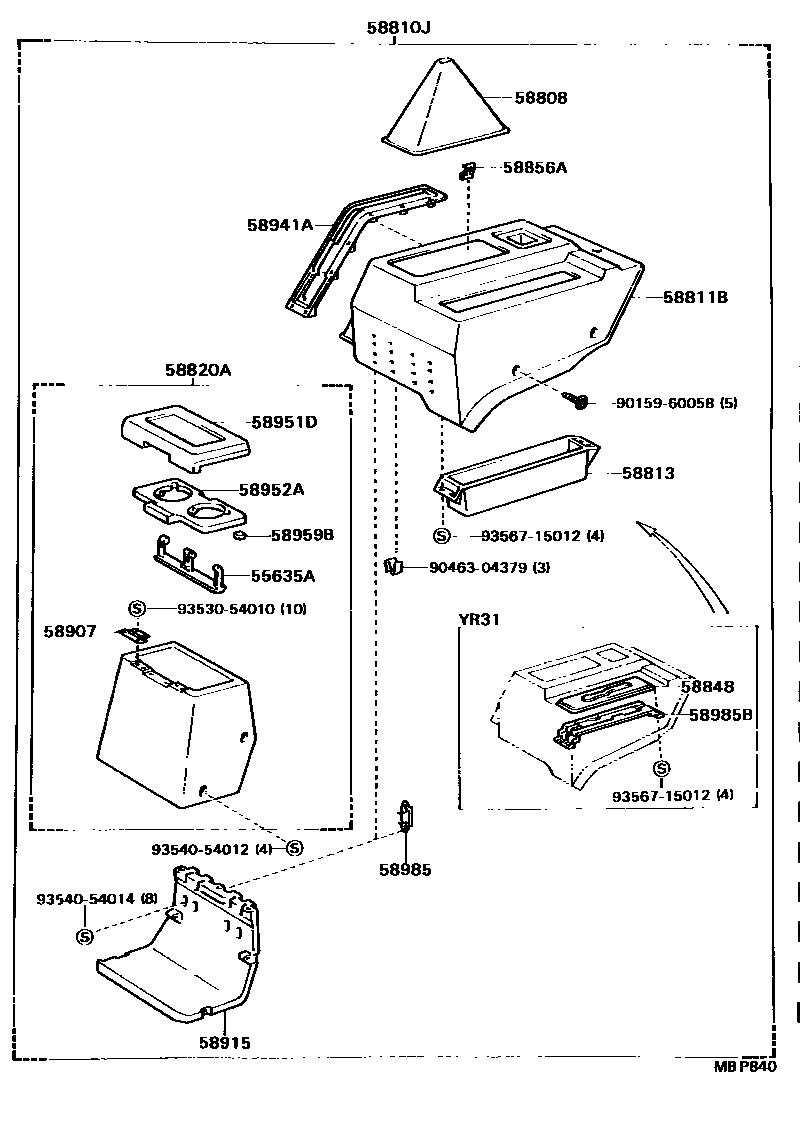

Parts diagram
55635ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2
main55635-28010i198808-199001
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-87002-03i198808-199001
SHADOW GRAY,TRIM1#
main58808-87002-16i198808-199001
BROWN,TRIM4#
58810JBOX ASSY, CONSOLE
main58810-28051-03i198808-198811
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58810-28051-16i198808-198811
W(ICE COOL BOX),SABLE,TRIM4#
main58810-28052-03i198811-199001
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58810-28052-06i198811-199001
W(ICE COOL BOX),SABLE,TRIM4#
main58810-28061-03i198808-198811
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58810-28061-16i198808-198811
W(ICE COOL BOX),SABLE,TRIM4#
main58810-28062-03i198811-199001
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58810-28062-06i198811-199001
W(ICE COOL BOX),SABLE,TRIM4#
main58810-28071-03i198808-198811
SHADOW GRAY,TRIM1#
main58810-28071-16i198808-198811
SABLE,TRIM4#
main58810-28072-03i198811-199001
SHADOW GRAY,TRIM1#
main58810-28072-06i198811-199001
SABLE,TRIM4#
main58810-28081-03i198808-198811
SHADOW GRAY,TRIM1#
main58810-28081-16i198808-198811
SABLE,TRIM4#
main58810-28082-03i198811-199001
SHADOW GRAY,TRIM1#
main58810-28082-06i198811-199001
SABLE,TRIM4#
main58810-87021-03i198808-198811
SHADOW GRAY,TRIM1#
main58810-87021-16i198808-198811
BROWN,TRIM4#
main58810-87022-03i198808-198811
W(DUAL AIR CONDITIONER & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#
main58810-87022-16i198808-198811
W(DUAL AIR CONDITIONER & ICE COOL BOX),BROWN,SABLE,TRIM4#
main58810-87023-03i198808-198811
W(DUAL AIR CONDITIONER & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#
main58810-87023-16i198808-198811
W(ICE COOL BOX),BROWN,TRIM4#
main58810-87028-03i198808-198811
SHADOW GRAY,TRIM1#
main58810-87028-16i198808-198811
BROWN,TRIM4#
main58810-87040-03i198811-199001
GRAY,TRIM1#
main58810-87040-06i198811-199001
W(DUAL AIR CONDITIONER & ICE COOL BOX),SABLE,TRIM4#
main58810-87041-03i198811-199001
GRAY,TRIM1#
main58810-87041-06i198811-199001
W(DUAL AIR CONDITIONER & ICE COOL BOX),SABLE,TRIM4#
main58810-87044-03i198811-199001
GRAY,TRIM1#
main58810-87044-06i198811-199001
SABLE,TRIM4#
main58810-87045-03i198811-199001
GRAY,TRIM1#
main58810-87045-06i198811-199001
SABLE,TRIM4#
main58810-95D18-03i198808-198810
SHADOW GRAY,TRIM1#
main58810-95D18-16i198808-198810
SABLE,TRIM4#
main58810-95D19-03i198808-198810
SHADOW GRAY,TRIM1#
main58810-95D19-16i198808-198810
SABLE,TRIM4#
main58810-95D22-03i198810-199001
SHADOW GRAY,TRIM1#
main58810-95D22-06i198810-199001
SABLE,TRIM4#
main58810-95D23-03i198810-199001
SHADOW GRAY,TRIM1#
main58810-95D23-06i198810-199001
SABLE,TRIM4#
58811BBOX, CONSOLE
main58811-28031-03i198808-198811
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58811-28031-16i198808-198811
W(ICE COOL BOX),SABLE,TRIM4#
main58811-28032-03i198811-199001
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58811-28032-06i198811-199001
W(ICE COOL BOX),SABLE,TRIM4#
main58811-28041-03i198808-198811
SHADOW GRAY,TRIM1#
main58811-28041-16i198808-198811
SABLE,TRIM4#
main58811-28042-03i198811-199001
SHADOW GRAY,TRIM1#
main58811-28042-06i198811-199001
SABLE,TRIM4#
main58811-87011-03i198808-199001
SHADOW GRAY,TRIM1#
main58811-87011-16i198808-199001
W(DUAL AIR CONDITIONER & ICE COOL BOX),SABLE,TRIM4#
main58811-87012-03i198808-199001
SHADOW GRAY,TRIM1#
main58811-87012-16i198808-199001
SABLE,TRIM4#
58813BOX, CONSOLE, UPPER
main58813-87001-03i198808-199001
SHADOW GRAY,TRIM1#
main58813-87001-16i198808-199001
SABLE,TRIM4#
58820ABOX ASSY, CONSOLE COMPARTMENT
main58820-28010-03i198808-199001
SHADOW GRAY,TRIM1#
main58820-28010-16i198808-199001
SABLE,TRIM4#
58848COVER, SHIFT LEVER HOLE
main58848-95D01i198808-199001
58856AHOLDER, CONSOLE BOX
main58856-28010i198808-199001
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-28010i198808-199001
58915PANEL, BOX BOTTOM
main58915-87001-13i198808-199001
SHADOW GRAY,TRIM1#
main58915-87001-16i198808-199001
SABLE,TRIM4#
58941ACOVER, PARKING BRAKE HOLE
main58941-28020i198808-199001
main58941-87010-01i198808-199001
BLACK,TRIM1#,4#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
main58951-28010-03i198808-199001
SHADOW GRAY,TRIM1#
main58951-28010-16i198808-199001
SABLE,TRIM4#
58952ADOOR, CONSOLE COMPARTMENT, INNER
main58952-28010-03i198808-199001
SHADOW GRAY,TRIM1#
main58952-28010-16i198808-199001
SABLE,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-28010×2i198808-199001
58985RETAINER, CONSOLE BOX
main58985-87001×4i198808-199001
58985BRETAINER, CONSOLE BOX, NO.1
main58985-95D02i198808-199001
9015960058
main90159-60058
9046304379
main90463-04379
9353054010
main93530-54010
9354054012
main93540-54012
9354054014
main93540-54014
9356715012
main93567-15012

22 parts on this diagram · 2 diagrams in section
