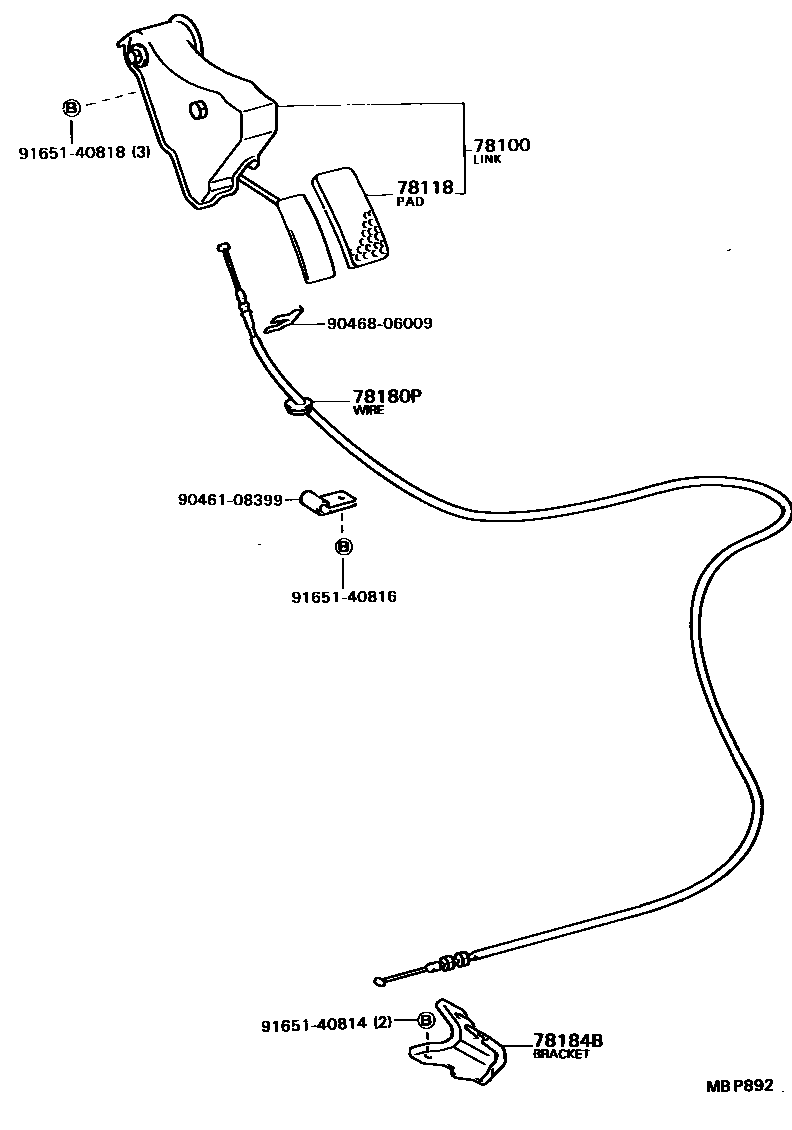

Toyota MODEL-F — ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
W(CRUISE CONTROL)
78118PAD, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78184BBRACKET, ACCELERATOR CONTROL CABLE
9046108399
main90461-08399
9046806009
main90468-06009
9165140814
main91651-40814
9165140816
main91651-40816
9165140818
main91651-40818
9 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota MODEL-F
This section contains 19 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota MODEL-F. Key components include: LINK ASSY, ACCELERATOR, CUSHION (FOR ACCELERATOR ROD), PAD, ACCELERATOR PEDAL, SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD), BUSH (FOR ACCELERATOR LINK ROD).
