Toyota MODEL-F — ACCELERATOR LINK

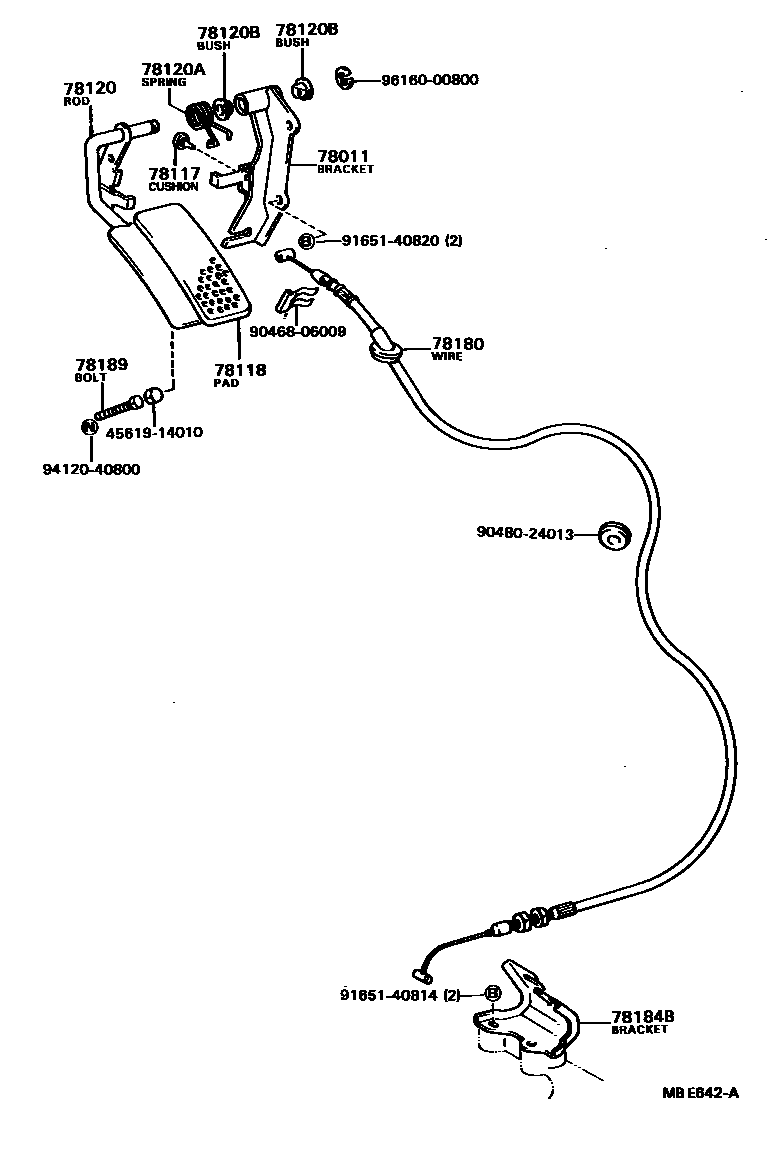

Parts diagram

78011BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT

main78011-87004i198211-198501

main78011-87005i198305-198501

78117CUSHION (FOR ACCELERATOR ROD)

main90541-05006i198211-198808

78118PAD, ACCELERATOR PEDAL

main78119-95700i198211-198808

78120ROD, ACCELERATOR LINK

main78103-87003i198211-198501

main78103-87005i198305-198501

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-20061i198211-198808

main90508-23078i198508-198808

78120BBUSH (FOR ACCELERATOR LINK ROD)

main78118-87001×2i198211-198808

78180WIRE ASSY, ACCELERATOR

main78180-28010i198211-198808

main78180-28020i198305-198408

main78180-28030i198608-198808

main78180-87008i198211-198808

main78180-87009i198305-198508

main78180-87011i198508-198808

main78180-87012i198508-198808

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-87004i198305-198508

main78184-87005i198508-198808

main78184-87006i198508-198808

main78184-95J00i198211-198808

78189BOLT, ACCELERATOR PEDAL STOPPER

main91131-40835i198211-198808

main91131-40850i198503-198808

4561914010COVER, KNUCKLE STOPPER

main45619-14010

9046806009

main90468-06009

9048024013

main90480-24013

9165140814

main91651-40814

9165140820

main91651-40820

9412040800

main94120-40800

9616000800

main96160-00800

16 parts on this diagram · 7 diagrams in section

ACCELERATOR LINK for Toyota MODEL-F

This section contains 36 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota MODEL-F. Key components include: BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT, LINK ASSY, ACCELERATOR, CUSHION (FOR ACCELERATOR ROD), PAD, ACCELERATOR PEDAL, ROD, ACCELERATOR LINK.
